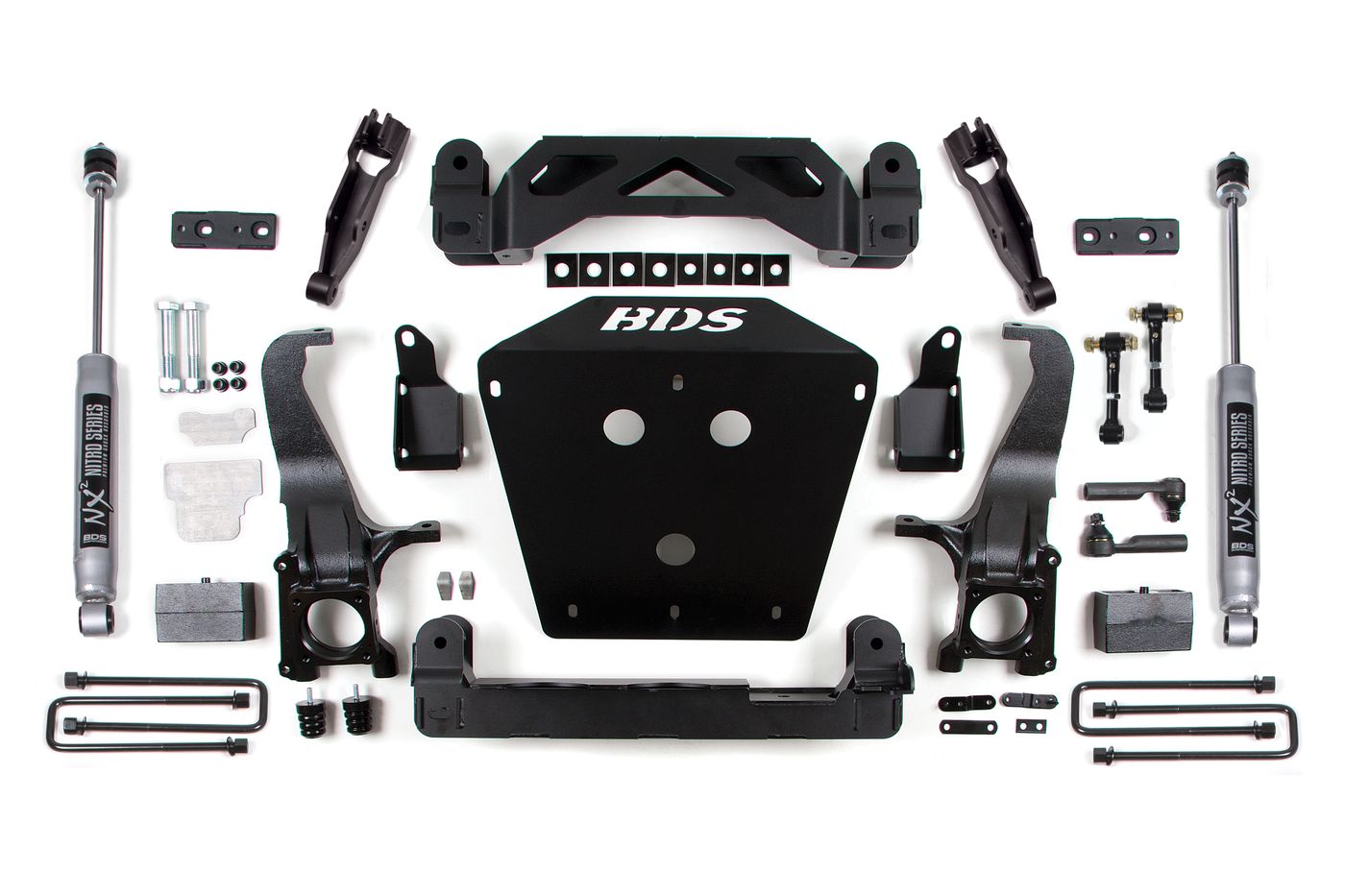

BDS 4.5″ Suspension Lift for 2016–2021 Toyota Tundra

Part number BDS 819FS

$2,461.79the kit

Tell us your truck and we'll check this kit against it.

4.5″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$2,461.79 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 2016 Tundra 4.5/3 Suspension System

What it does

  • Raises the truck 4.5″
  • Room for tires up to 35″, the maker says

What you get

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation bra

What else you might need

About this kit

BDS steps up the performance and capability of the 2016-2021 Toyota Tundra 4WD trucks with a 4.5-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes a lower strut extension, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Highlights

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation bra

Trucks it fits

TruckYearsDriveTrims
Toyota Tundra 2016–2021 4WD 1794 Edition, Limited, Platinum, SR, SR5
Toyota Tundra 2019–2021 All 1794
Toyota Tundra 2020 All TRD Sport
Toyota Tundra 2020–2021 All TRD Off-Road
Toyota Tundra 2021 4WD Base, Nightshade, TRD Off-Road Premium, TRD Sport Premium, Trail
