BDS 8″ Suspension Lift for 2014–2018 Chevrolet Silverado 1500 and 2014–2018 GMC Sierra 1500

Part number BDS 743H

$2,187.60the kit

Tell us your truck and we'll check this kit against it.

8″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$2,187.60 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 14-18 GM1500 8in - Alum/Stamped UCA

What it does

  • Raises the truck 8″
  • Room for tires up to 35″, the maker says

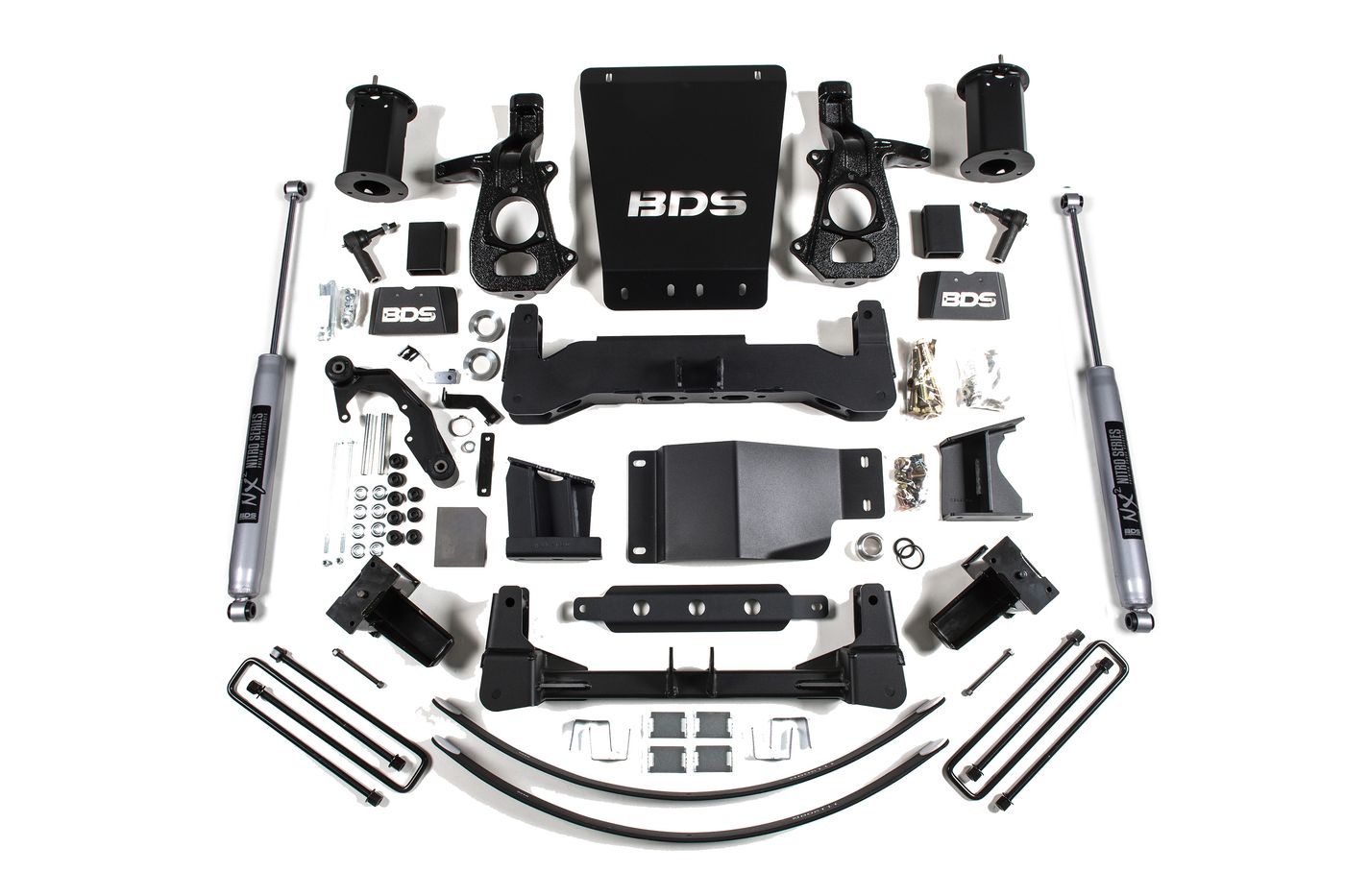

What you get

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation bra

What else you might need

About this kit

Go big with the BDS 8-inch lift kit for your 2014-2018 Chevy Silverado and GMC Sierra 1500 resulting in one of a kind lifted truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mount strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Highlights

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation bra

Trucks it fits

TruckYearsDriveTrims
Chevrolet Silverado 1500 2014 4WD High Country, LT, LTZ, WT
Chevrolet Silverado 1500 2015 4WD All
Chevrolet Silverado 1500 2016 4WD Custom, High Country, LS, LT, LTZ, SSV, WT
Chevrolet Silverado 1500 2017–2018 4WD All
GMC Sierra 1500 2014–2018 4WD Base, SLE, SLT

More for the Chevrolet Silverado 1500 and the GMC Sierra 1500.

How it works
  • Each truck's own page has its bolt pattern, tire sizes, and the wheels and kits that fit.
  • True to size. Fitment measured to the inch.
