BDS 6″ Suspension Lift for 2015–2019 Chevrolet Suburban and 3 more trucks
Part number BDS 731FS
$2,985.65the kit
Tell us your truck and we'll check this kit against it.
Choose a version
6″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 731H $2,685.65 6″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 731FS $2,985.65How much taller your truck sits.
Better shocks ride smoother. Same height.
$2,985.65 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 15-18 GM1500 SUV 6 -Cast Steel UCA
What it does
- Raises the truck 6″
- Room for tires up to 35″, the maker says

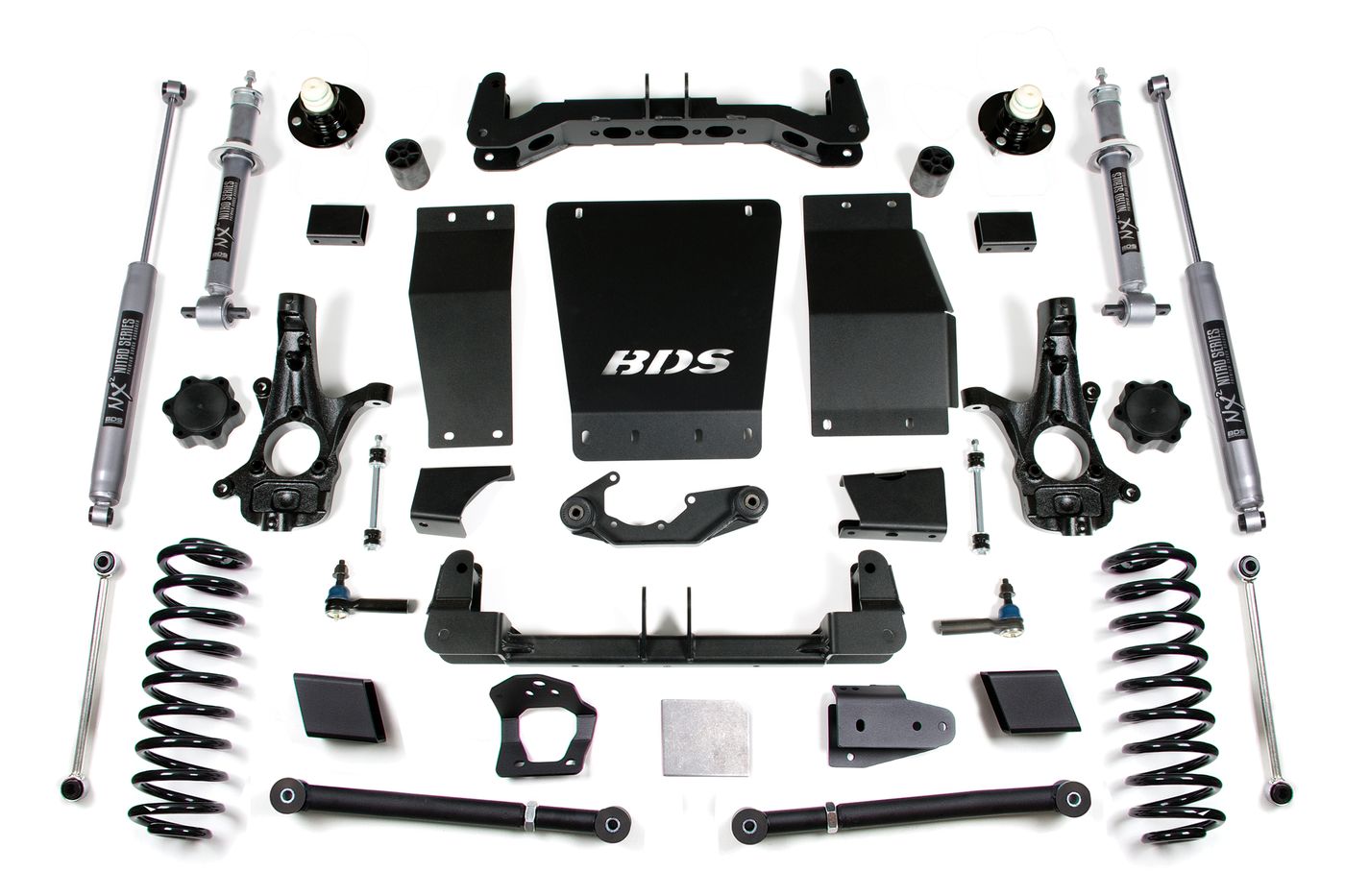

What you get
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Highlights
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement rear upper control arms provide durability and serviceability <li
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Suburban | 2015–2019 | All | All |
| Chevrolet Tahoe | 2015–2019 | All | All |
| GMC Yukon | 2015–2019 | All | All |
| GMC Yukon XL | 2015–2019 | All | All |
How it works
- True to size. Fitment measured to the inch.
