BDS 5.5″ Suspension Lift for 2015–2022 Chevrolet Colorado and 2015–2022 GMC Canyon
Part number BDS 722H
$2,009.60the kit
Tell us your truck and we'll check this kit against it.
Choose a version
5.5″ Suspension Lift Adjusters: not stated by maker The maker lists no difference between these two except the part number and the price. Part 722H $2,009.60 5.5″ Suspension Lift Adjusters: not stated by maker The maker lists no difference between these two except the part number and the price. Part 722FS $2,309.60 FOX 2.5 with DSC shocks Adjusters: DSC Part 722FDSC $4,375.60How much taller your truck sits.
Better shocks ride smoother. Same height.
$2,009.60 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 15-19 Colorado 5.5in Suspension System
What it does
- Raises the truck 5.5″
- Room for tires up to 33″, the maker says

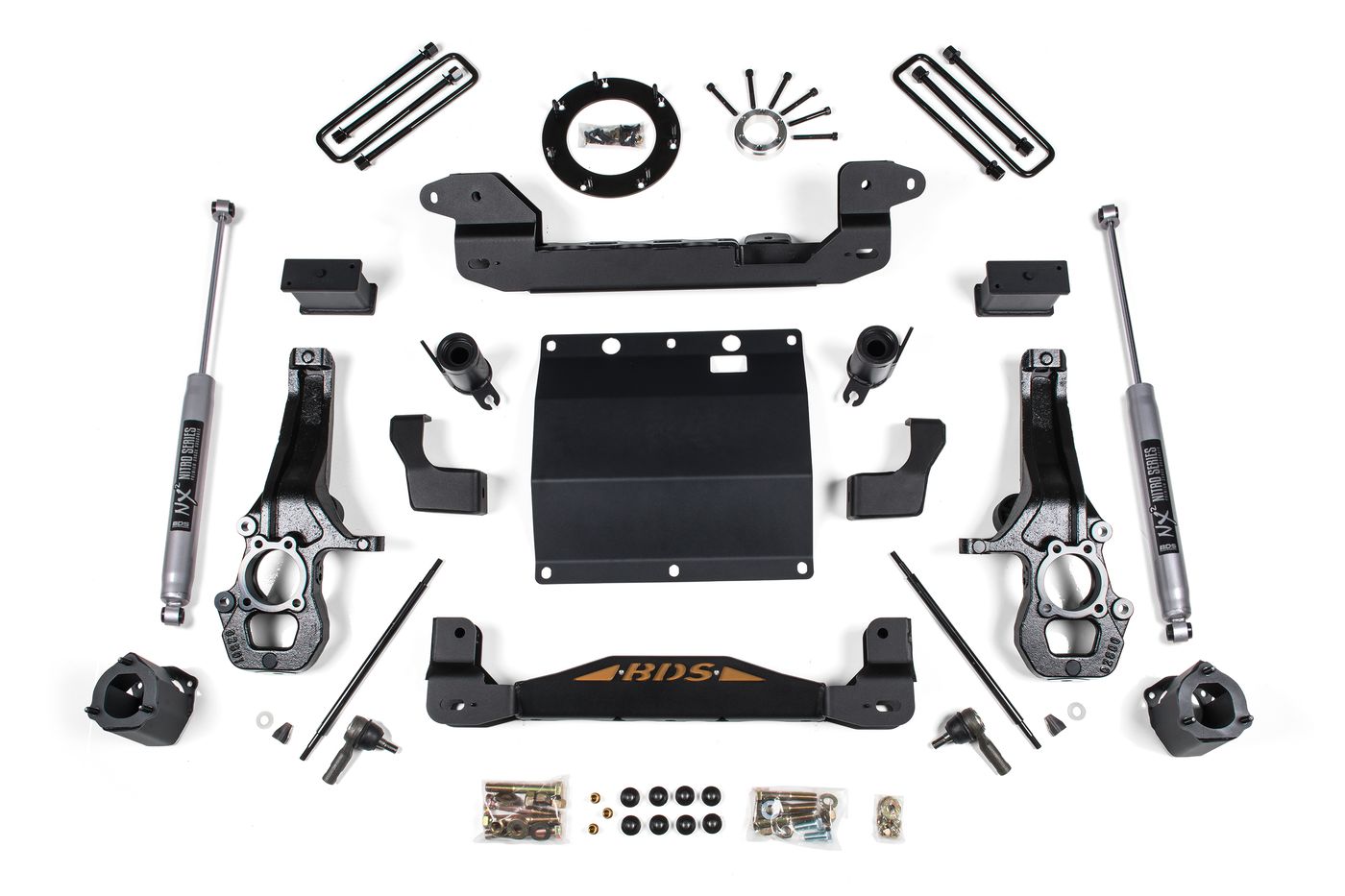

What you get
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation bra
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
Take your Chevy Colorado and GMC Canyon 4WD truck to the next level with a 5.5-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links, bump stop extensions, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers a heavy duty fabricated lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Highlights
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation bra
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Colorado | 2015–2016 | All | All |
| Chevrolet Colorado | 2017–2020 | All | Base |
| Chevrolet Colorado | 2017–2022 | All | LT, WT, Z71 |
| Chevrolet Colorado | 2021–2022 | All | Z71 LT |
| GMC Canyon | 2015–2022 | All | All |
How it works
- True to size. Fitment measured to the inch.
