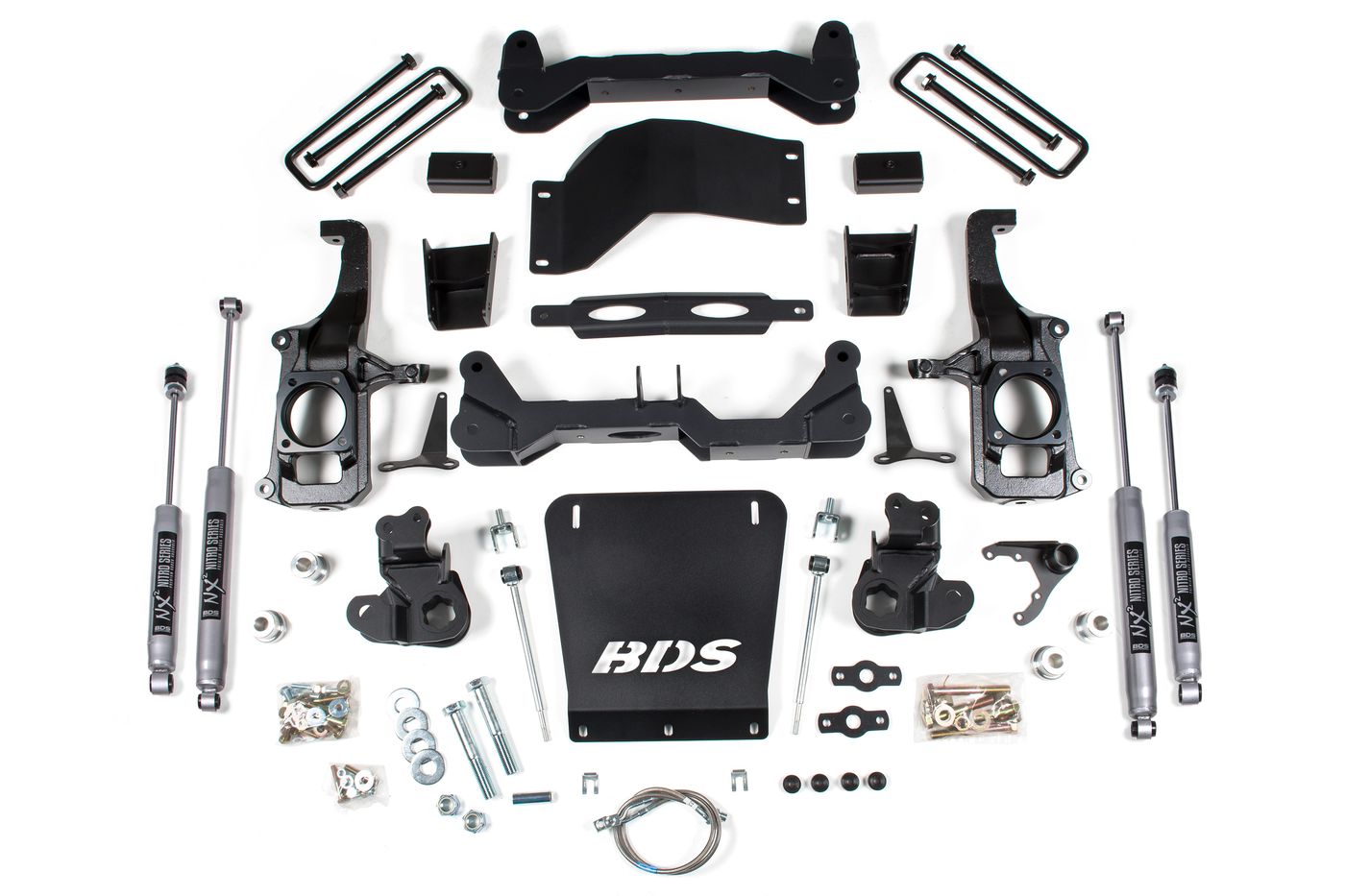

BDS 4.5″ Suspension Lift with FOX 2.5 Performance Elite shocks for 2011–2019 Chevrolet Silverado 2500 HD and 3 more trucks

Part number BDS 719FPE

$5,400.55the kit

Tell us your truck and we'll check this kit against it.

4.5″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$5,400.55 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: BDS Suspension 2011-2019 GM 2500HD/3500HD 4wd/2wd 4.5 Suspension Lift Kit 2 Rear Lift w/o Top Overload Block - Fox 2.5 PES Shocks 719FPE

What it does

  • Raises the truck 4.5″
  • Room for tires up to 35″, the maker says
  • Comes with FOX 2.5 Performance Elite shocks

What you get

  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential rel

What else you might need

About this kit

Improve the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 4.5-inch lift kit. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design t

Highlights

  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential rel

Trucks it fits

TruckYearsDriveTrims
Chevrolet Silverado 2500 HD 2011–2019 All All
Chevrolet Silverado 3500 HD 2011–2019 All All
GMC Sierra 2500 HD 2011–2019 All All
GMC Sierra 3500 HD 2011–2019 All All

More for the Chevrolet Silverado 2500 HD & 3500 HD and the GMC Sierra 2500 HD & 3500 HD.

How it works
  • Each truck's own page has its bolt pattern, tire sizes, and the wheels and kits that fit.
  • True to size. Fitment measured to the inch.
