BDS 4″ Suspension Lift with FOX 2.5 Performance Elite shocks for 2014–2018 Chevrolet Silverado 1500 and 2014–2018 GMC Sierra 1500

Part number BDS 713PES

$5,452.70the kit

Tell us your truck and we'll check this kit against it.

4″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$5,452.70 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: BDS Suspension 2014-2018 GM 1500 4wd 4 Suspension Lift Kit Alum/Stamped 2 Rear Block - 2.5 PES C/O Front - 2.5 PES P/B Rear 713PES

What it does

  • Raises the front 4″ and the rear 2″
  • Room for tires up to 33″, the maker says
  • Comes with FOX 2.5 Performance Elite shocks

What else you might need

About this kit

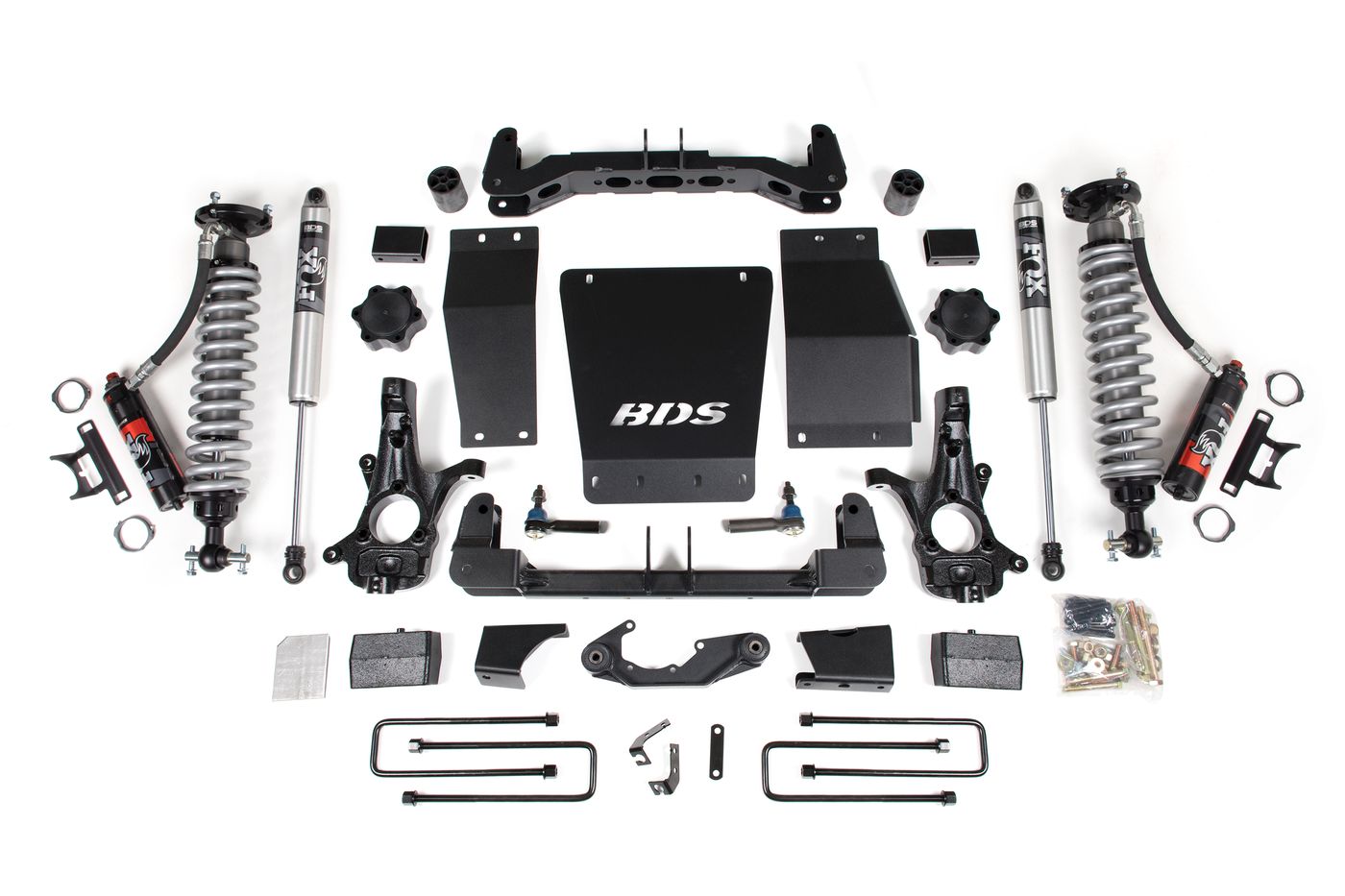

The BDS 4-inch lift kit is a fantastic upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500, leaving others envious. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. This kit leverages BDS's proven high-clearance design to improve ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for excellent on-road handling. Up front, the kit uses full-length replacement strut shocks, high-arched 1/4-inch-thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These, combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware, and more, provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear, BDS offers both replacement lift blocks and full Glide-Ride leaf springs to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets, and precision-tuned NX2 Nitro or FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy-duty 1/4-inch-thick laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined ductile cast-iron steering knuckle designs that work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Highlights

  • Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
  • The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or

Trucks it fits

TruckYearsDriveTrims
Chevrolet Silverado 1500 2014 4WD High Country, LT, LTZ, WT
Chevrolet Silverado 1500 2015 4WD All
Chevrolet Silverado 1500 2016 4WD Custom, High Country, LS, LT, LTZ, SSV, WT
Chevrolet Silverado 1500 2017–2018 4WD All
GMC Sierra 1500 2014–2018 4WD All
