BDS 6″ Suspension Lift for 2006–2008 Dodge Ram 1500
Part number BDS 624FS
$2,432.65the kit
Tell us your truck and we'll check this kit against it.
Choose a version
6″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 624H $2,132.65 6″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 624FS $2,432.65How much taller your truck sits.
Better shocks ride smoother. Same height.
$2,432.65 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 06-08 Ram 1500 4wd 6/4 Block Kit
What it does
- Raises the truck 6″
- Room for tires up to 37″, the maker says

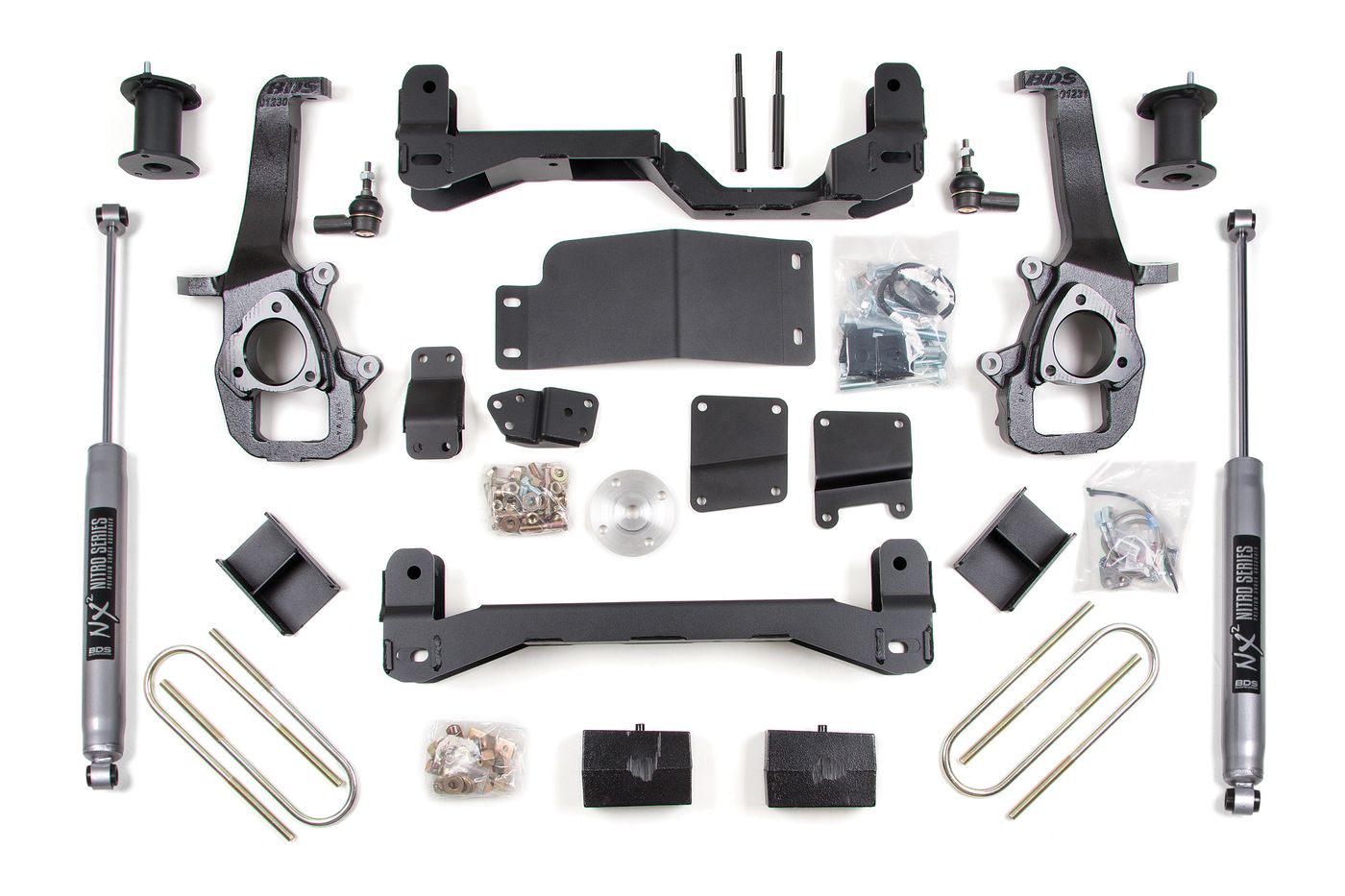

What you get
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation bra
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
BDS steps up the performance and capability of the 2006-2008 Dodge RAM 1500 4WD trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear this kit utilizes heavy duty cast steel lift blocks, longer u-bolts, and brake line relocation brackets. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC
Highlights
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation bra
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Dodge Ram 1500 | 2006 | 4WD | Laramie, SLT, ST, Sport, TRX4 |
| Dodge Ram 1500 | 2007–2008 | 4WD | All |
How it works
- True to size. Fitment measured to the inch.
