BDS 8″ Suspension Lift for 2000–2005 Ford Excursion

Part number BDS 304FS

$2,747.29the kit

Tell us your truck and we'll check this kit against it.

8″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$2,747.29 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 00-05 Excursion 4wd 8/8 Spring Kit

What it does

  • Raises the truck 8″
  • Room for tires up to 36″, the maker says

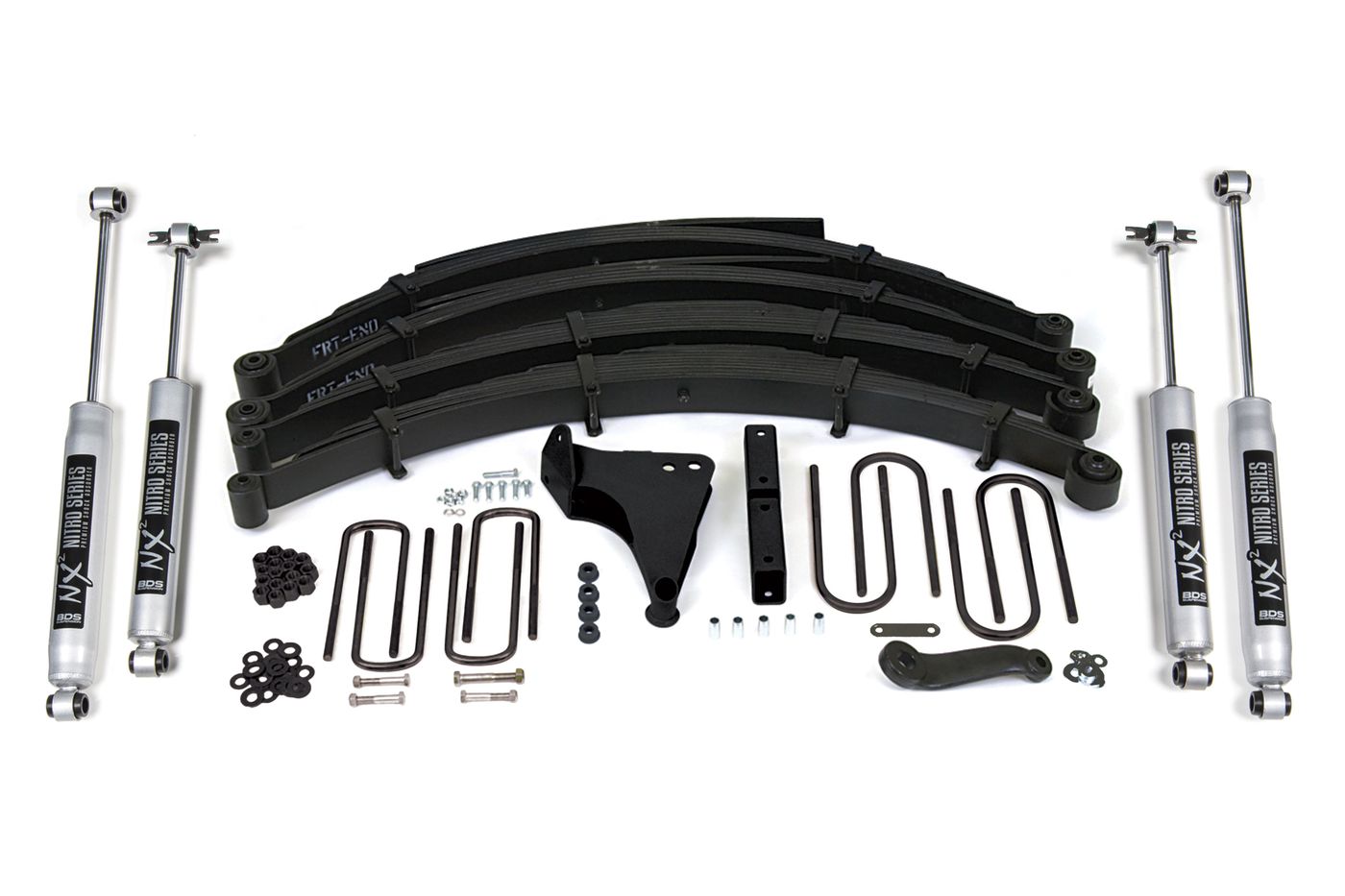

What you get

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • C

What else you might need

About this kit

Take your 2000-2005 Ford Excursion 4WD to the next level with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires. Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks. In the rear the base kit utilizes replacement Glide-Ride full leaf spring pack, u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks. Glide-Ride Leaf Springs Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle. Steering Correction To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Highlights

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling

Trucks it fits

TruckYearsDriveTrims
Ford Excursion 2000–2005 4WD All
How it works
  • True to size. Fitment measured to the inch.
