BDS 7″ Suspension Lift with FOX 2.5 Performance Elite shocks for 2023–2026 Ford F-250 Super Duty and 2023–2026 Ford F-350 Super Duty
4-Link · Part number BDS 2252PES
$6,757.33the kit
Tell us your truck and we'll check this kit against it.
Choose a version
NX2 shocks Front: 4-link Part 2252H $2,913.23 FOX 2.0 Performance shocks Front: 4-link Part 2252FS $3,513.23 FOX 2.5 Performance shocks Front: 4-link Part 2252FPS $4,061.23 FOX 2.5 Performance Elite shocks Front: 4-link Part 2252FPE $6,245.33 FOX 2.5 Performance Elite shocks Front: coilovers · 4-link Part 2252PES $6,757.33How much taller your truck sits.
Better shocks ride smoother. Same height.
$6,757.33 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: BDS Suspension 2023-2026 Ford F250/350 Super Duty 4wd 7 4-Link Suspension Lift Kit 5 Rear Block Diesel - Fox 2.5 PES C/O Front Fox 2.5 PES Rear 2252PES
What it does
- Raises the front 7″ and the rear 5″
- Room for tires up to 38″, the maker says
- Comes with FOX 2.5 Performance Elite shocks
What you get
- FOX 2.5 Coilover mounts in factory coil bucket location
- Adds additional secondary FOX 2.5 Performance Elite shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit

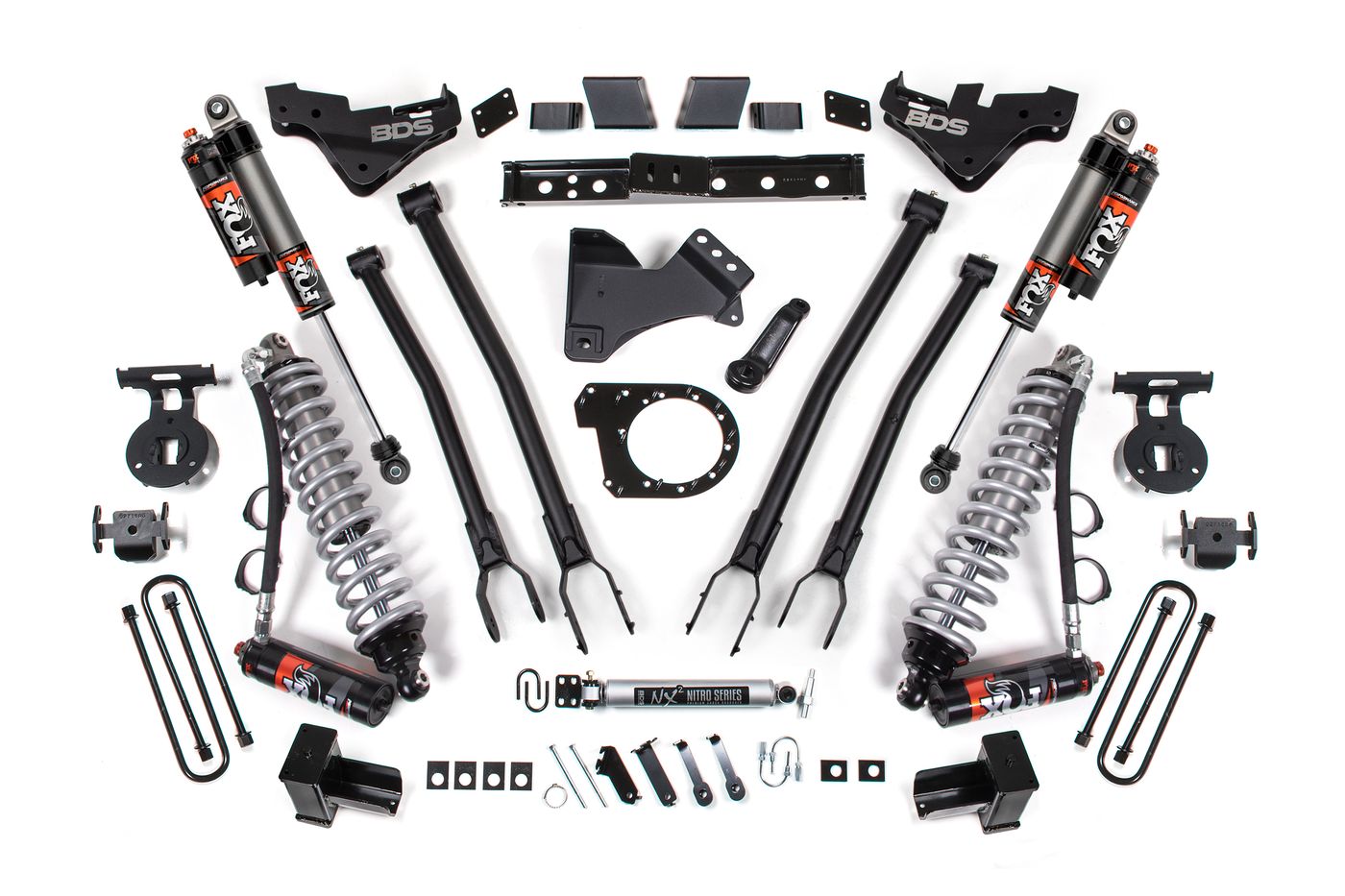

Raise the bar on your Ford Super Duty diesel truck with this 7-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes FOX 2.5 coilover shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks. 4-Link Conversion Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. FOX Performance Elite Coilover FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling effi
Highlights
- FOX 2.5 Coilover mounts in factory coil bucket location
- Adds additional secondary FOX 2.5 Performance Elite shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Ford F-250 Super Duty | 2023–2024 | 4WD | All |
| Ford F-250 Super Duty | 2025–2026 | 4WD | King Ranch, Lariat, Platinum, XL, XLT |
| Ford F-350 Super Duty | 2023–2024 | All | Limited |
| Ford F-350 Super Duty | 2023–2026 | 4WD | King Ranch, Lariat, Platinum, XL, XLT |
