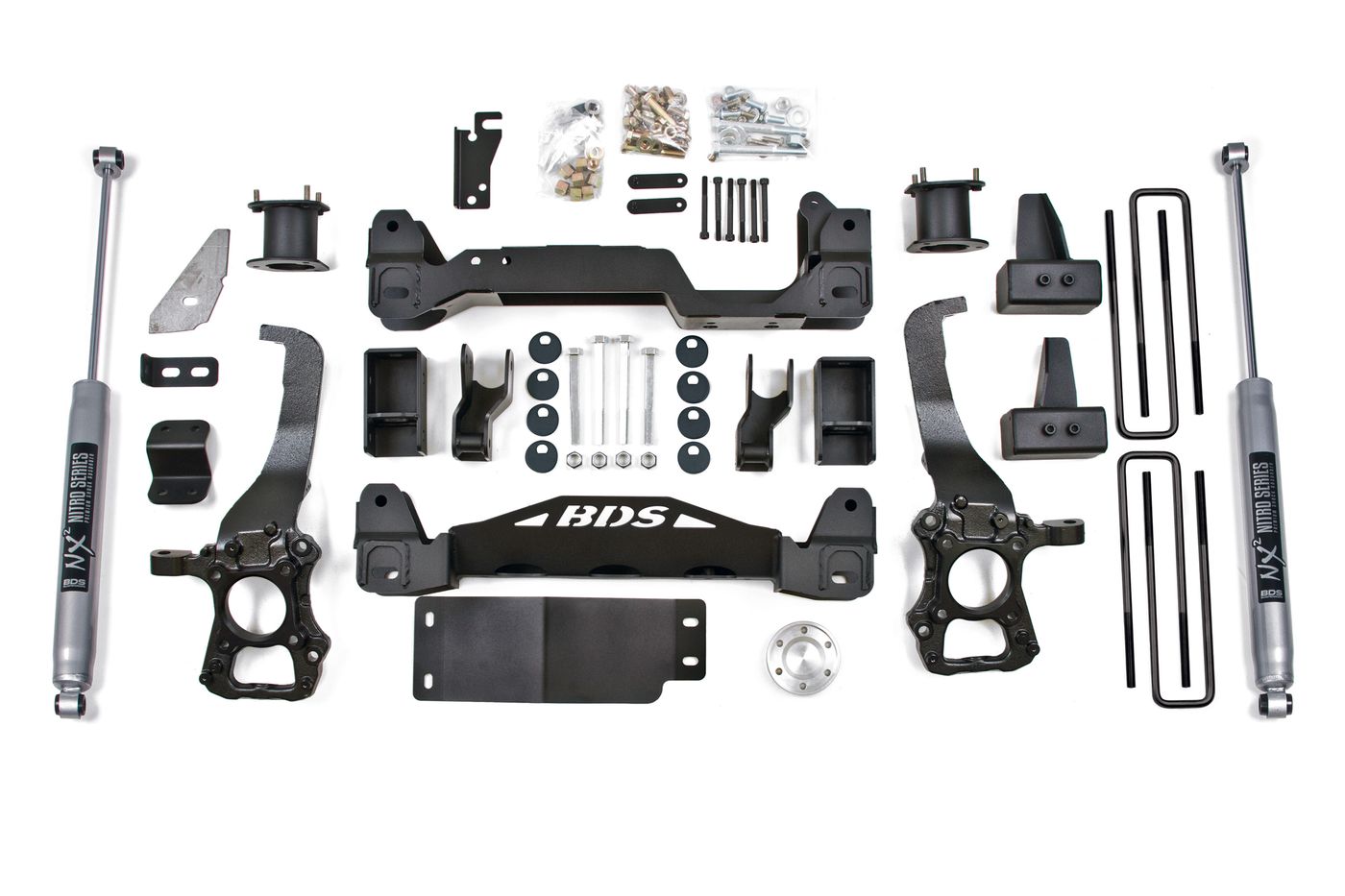

BDS 4″ Suspension Lift for 2014 Ford F-150

Part number BDS 1920FS

$2,194.65the kit

Tell us your truck and we'll check this kit against it.

4″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$2,194.65 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 2014 F150 4wd 4 2.5 Lift System

What it does

  • Raises the truck 4″
  • Room for tires up to 35″, the maker says

What you get

  • High clearance crossmembers improve strength and offroad capability
  • Top mounted strut spacers to provide lift and ins

What else you might need

About this kit

BDS enhances the performance and capability of the 2014 Ford F-150 4WD trucks with 4-inch suspension lift kits. Designed to improve stance, performance, and ability, this kit includes everything necessary to set your truvehicleoff-road right with clearance for up to 35" tires. This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for superiortruvehicle off-road on-road handling characteristics. Up front, the kit utilizes high-arched, 1/4-inch-thick steel crossmembers, multipiece differential relocation brackets, and a skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These, combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware, and more, provide a comprehensive front suspension lift ready for use and abuse. In the rear, BDS utilizes high-strength cast steel lift blocks and longer U-bolts to lift and level the stance, along with NX2 Nitro or optional FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy-duty, 1/4-inch-thick, laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined ductile cast iron steering knuckle designs that work in conjunction with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Highlights

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and ins

Trucks it fits

TruckYearsDriveTrims
Ford F-150 2014 4WD FX4, King Ranch, Lariat, Limited, Platinum, STX, XL, XLT
