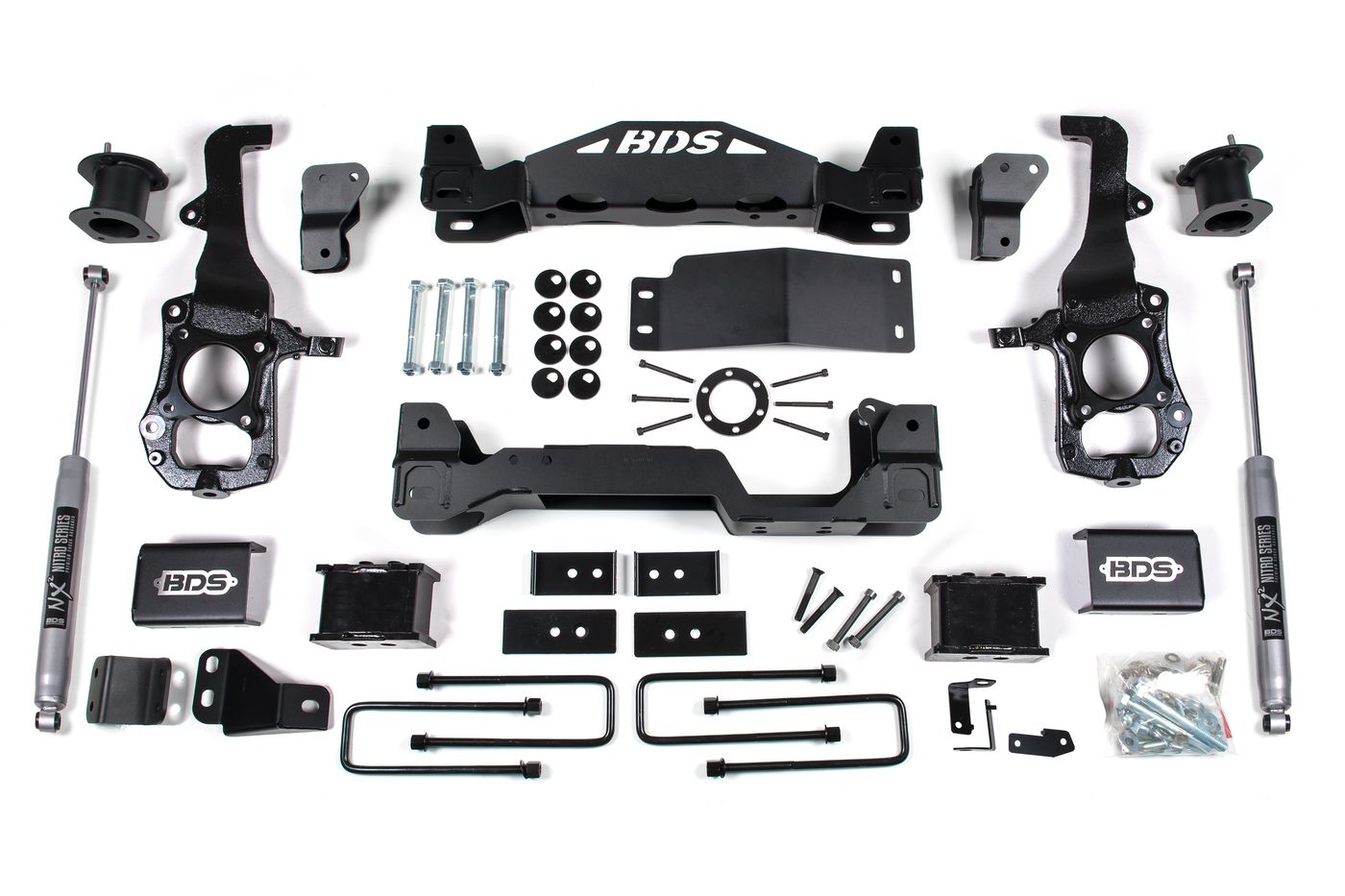

BDS 6″ Suspension Lift with NX2 shocks for 2021–2026 Ford F-150
Part number BDS 1900H
$2,018.60the kit
Tell us your truck and we'll check this kit against it.
Choose a version
NX2 shocks Rear lift: 4″ blocks Part 1900H $2,018.60 FOX 2.0 Performance shocks Rear lift: 4″ blocks Part 1900FS $2,318.60 FOX 2.0 Performance shocks Rear lift: 3″ blocks Part 1900FSR $2,680.55How much taller your truck sits.
Better shocks ride smoother. Same height.
$2,018.60 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 2021-2022 Ford F150 6in BDS Lift System w/ 4in Rear Block - NX2 Shocks
What it does
- Raises the front 6″ and the rear 4″
- Room for tires up to 37″, the maker says
- Comes with NX2 shocks
What you get
- High clearance crossmembers improve strength and offroad capability
- Top mounted strut spacers to provide lift and ins
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
BDS steps up the performance and capability of the 2021-2026 Ford F150 trucks with 6-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks. High Clearance Crossmemebers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Highlights
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and ins
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Ford F-150 | 2021–2023 | 4WD | King Ranch, Lariat, Limited, Platinum, SSV |
| Ford F-150 | 2021–2026 | 4WD | XL, XLT |
| Ford F-150 | 2024–2026 | 4WD | King Ranch, Lariat, Platinum, STX |
More for the Ford F-150.
How it works
- Each truck's own page has its bolt pattern, tire sizes, and the wheels and kits that fit.
- True to size. Fitment measured to the inch.
