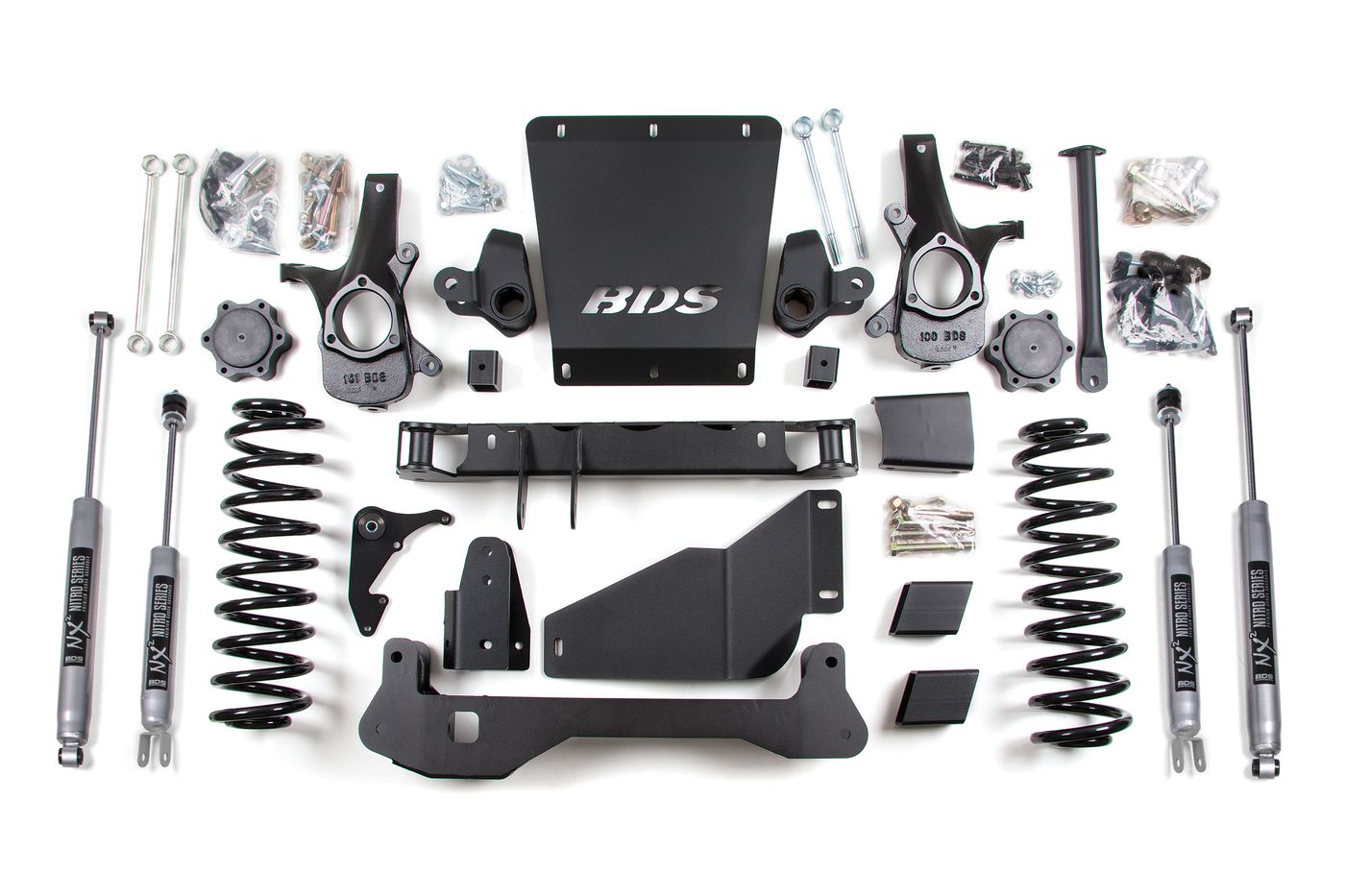

6.5" Suspension Lift Kit (183FS)
$2,816.55the kit
Tell us your truck and we'll check this kit against it.
Questions about fit? Call (903) 249-4714
Nothing is charged online. We confirm fitment and the final price on the call.
Before you buy
APG, the distributor, describes this kit as: 00-06 K1500/SUV HC 6.5/6 Coil
About this kit
Designed to improve stance, performance, and capability, the BDS 6-inch lift kit for the 2000-2006 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 4WD is a must have upgrade. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. The rear lift is accomplished with new coil springs, track bar relocation, sway bar links and extended bump stops. Also for the rear choose between brackets for Auto Ride equipped vehicles or precision tuned NX2 Nitro and premium FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design
Highlights
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential rel
Trucks it fits
All 19 fitments
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Avalanche 1500 | 2002 | 4WD | LS, LT |
| Chevrolet Avalanche 1500 | 2002–2003 | All | North Face |
| Chevrolet Avalanche 1500 | 2002–2005 | 4WD | Base |
| Chevrolet Avalanche 1500 | 2002–2006 | All | Z71 |
| Chevrolet Avalanche 1500 | 2003 | 4WD | WBH |
| Chevrolet Avalanche 1500 | 2005–2006 | 4WD | LS, LT |
| Chevrolet Avalanche 1500 | 2006 | All | Base |
| Chevrolet Suburban 1500 | 2000–2001 | 4WD | All |
| Chevrolet Suburban 1500 | 2002–2005 | All | Z71 |
| Chevrolet Suburban 1500 | 2002–2006 | 4WD | LS, LT |
| Chevrolet Suburban 1500 | 2006 | 4WD | Base, Z71 |
| Chevrolet Tahoe | 2000 | 4WD | Base, LS, LT, Z71 |
| Chevrolet Tahoe | 2001–2006 | 4WD | All |
| GMC Yukon | 2000 | 4WD | All |
| GMC Yukon | 2001–2006 | 4WD | SLE, SLT |
| GMC Yukon | 2006 | 4WD | SL |
| GMC Yukon XL 1500 | 2000 | 4WD | All |
| GMC Yukon XL 1500 | 2001–2006 | 4WD | SLE, SLT |
| GMC Yukon XL 1500 | 2006 | 4WD | SL |
