BDS 4.5″ Suspension Lift for 2001–2003 and 2005–2006 Chevrolet Silverado 1500 HD and 8 more trucks
Part number BDS 1817H
$1,973.60the kit
Tell us your truck and we'll check this kit against it.
Choose a version
4.5″ Suspension Lift Fits: 2002–2006 Chevrolet Avalanche 2500 and 2001–2003 and 2005–2006 Chevrolet Silverado 1500 HD and 7 more Not the same kit as the others. Open each to compare, or ask us. Part 1817H $1,973.60 4.5″ Suspension Lift Fits: 2002–2006 Chevrolet Avalanche 2500 and 2001–2003 and 2005–2006 Chevrolet Silverado 1500 HD and 7 more Not the same kit as the others. Open each to compare, or ask us. Part 1817FS $2,573.60How much taller your truck sits.
Better shocks ride smoother. Same height.
$1,973.60 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 01-10 K2500/SUV HC 4wd 4.5/3 Block
What it does
- Raises the truck 4.5″
- Room for tires up to 33″, the maker says

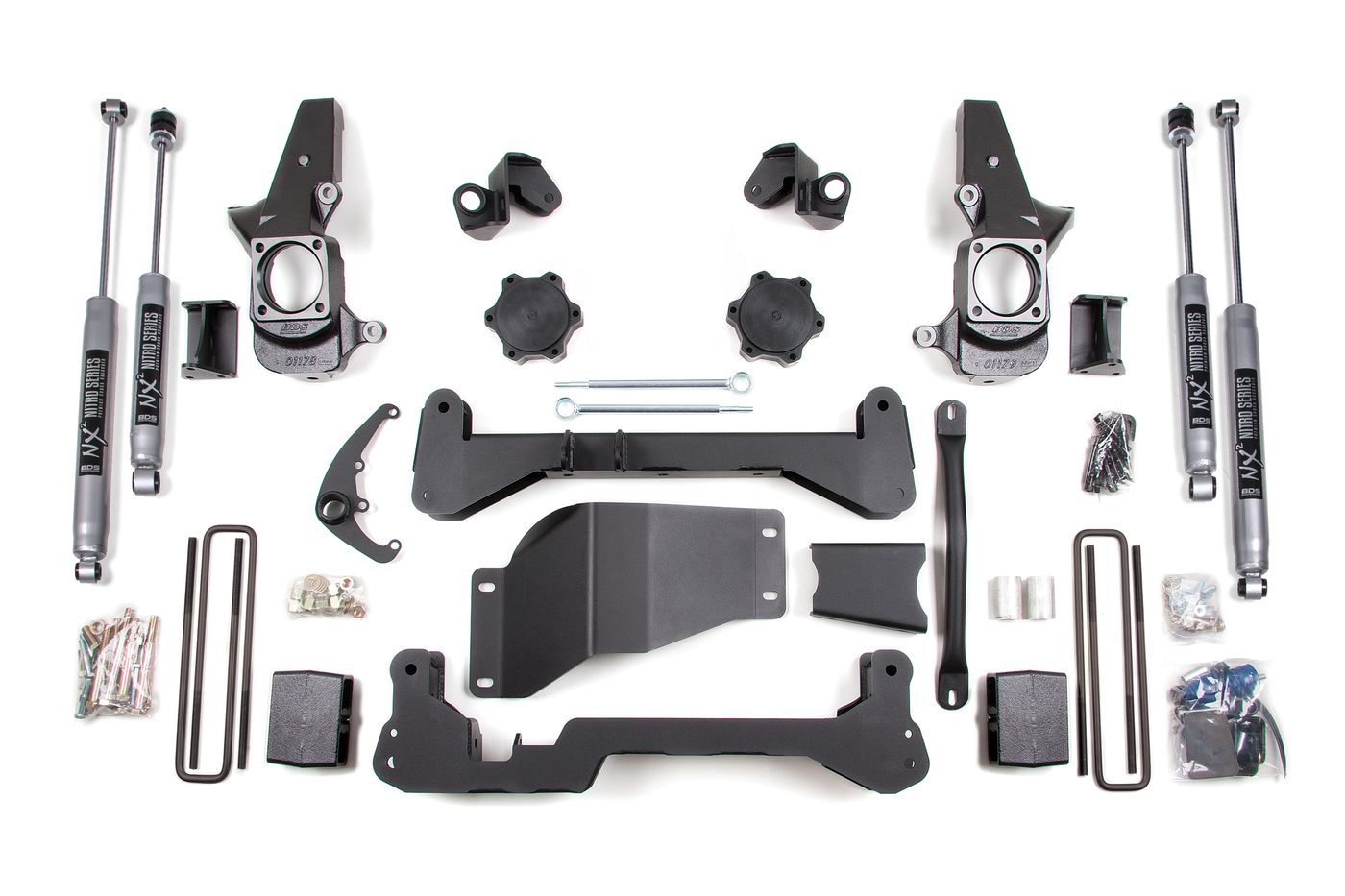

What you get
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Fact
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
Designed to improve stance, performance, and capability, the BDS 4.5-inch lift kit for the 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 4WD is a must have upgrade. For maximum ground clearance. This kit includes everything necessary to set your truck up right with clearance for up to 33" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function..
Highlights
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
Trucks it fits
All 11 fitments
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Avalanche 2500 | 2002–2006 | All | All |
| Chevrolet Silverado 1500 HD | 2001–2003 | All | All |
| Chevrolet Silverado 1500 HD | 2005–2006 | All | All |
| Chevrolet Silverado 2500 HD | 2001–2010 | All | All |
| Chevrolet Silverado 3500 HD | 2007–2010 | All | All |
| Chevrolet Suburban 2500 | 2001–2010 | All | All |
| GMC Sierra 1500 HD | 2001–2003 | All | All |
| GMC Sierra 1500 HD | 2005–2006 | All | All |
| GMC Sierra 2500 HD | 2001–2010 | All | All |
| GMC Sierra 3500 HD | 2007–2010 | All | All |
| GMC Yukon XL 2500 | 2001–2010 | All | All |
More for the Chevrolet Silverado 2500 HD & 3500 HD and the GMC Sierra 2500 HD & 3500 HD.
How it works
- Each truck's own page has its bolt pattern, tire sizes, and the wheels and kits that fit.
- True to size. Fitment measured to the inch.
