BDS 4″ Suspension Lift with NX2 shocks for 2019–2024 Ram 3500

Radius Arm · Part number BDS 1707H

$2,122.86the kit

Tell us your truck and we'll check this kit against it.

4″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$2,122.86 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 2019-2020 Ram 3500 4 Radius Arm Diesel - 2 Rear Block w/ overload - 8-Bolt T-Case - NX2 Shocks

What it does

  • Raises the front 4″ and the rear 2″
  • Room for tires up to 35″, the maker says
  • Comes with NX2 shocks

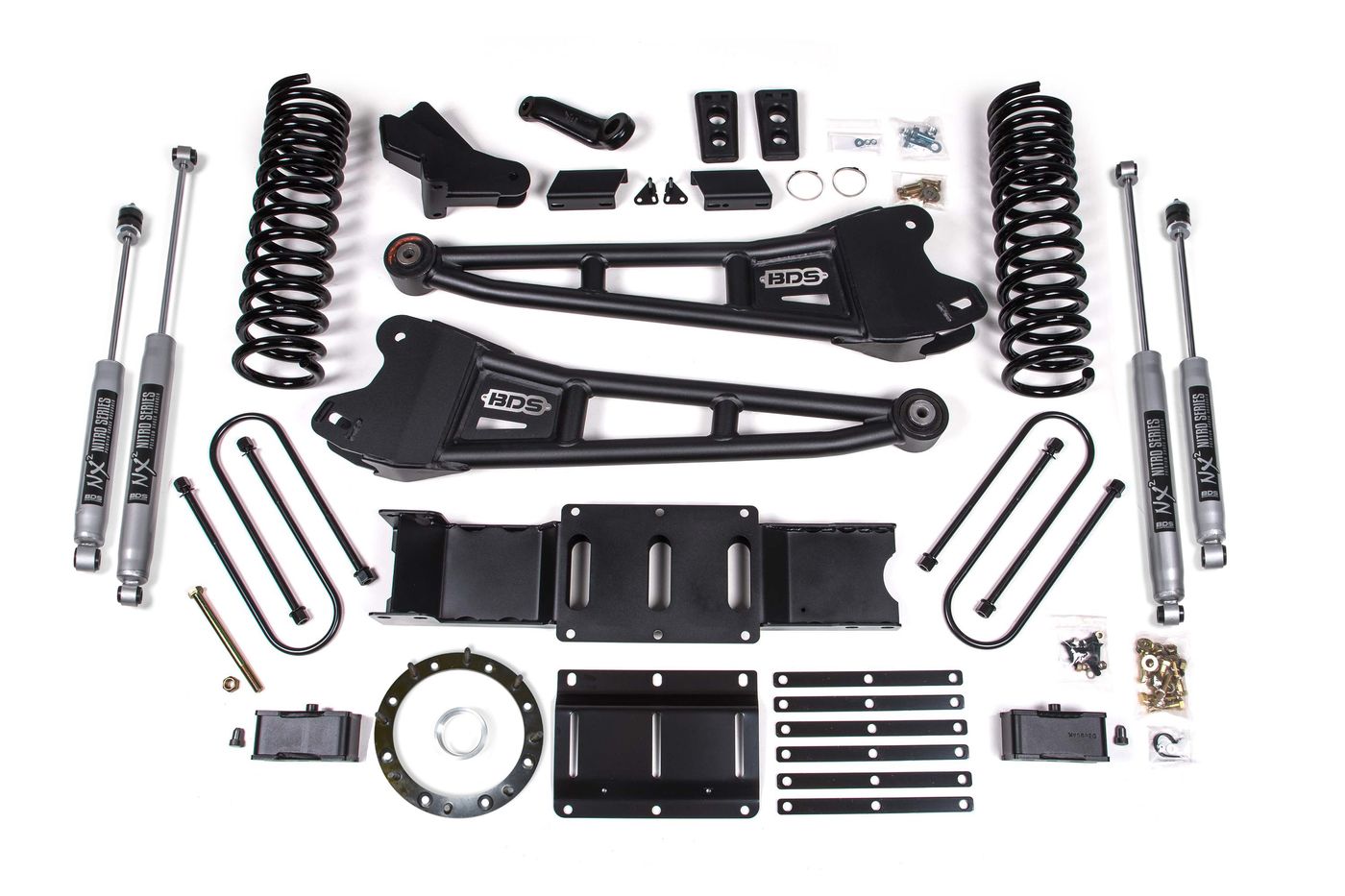

What you get

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle</l

What else you might need

About this kit

Take your RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. HD Radius Arms In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. Pro-Ride Coil Springs A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Steering Correction To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Highlights

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle</l

Trucks it fits

TruckYearsDriveTrims
Ram 3500 2019–2023 4WD All
Ram 3500 2024 4WD Big Horn, Laramie, Limited, Limited Longhorn, Tradesman

More for the Ram 2500 & 3500.

How it works
  • Each truck's own page has its bolt pattern, tire sizes, and the wheels and kits that fit.
  • True to size. Fitment measured to the inch.
