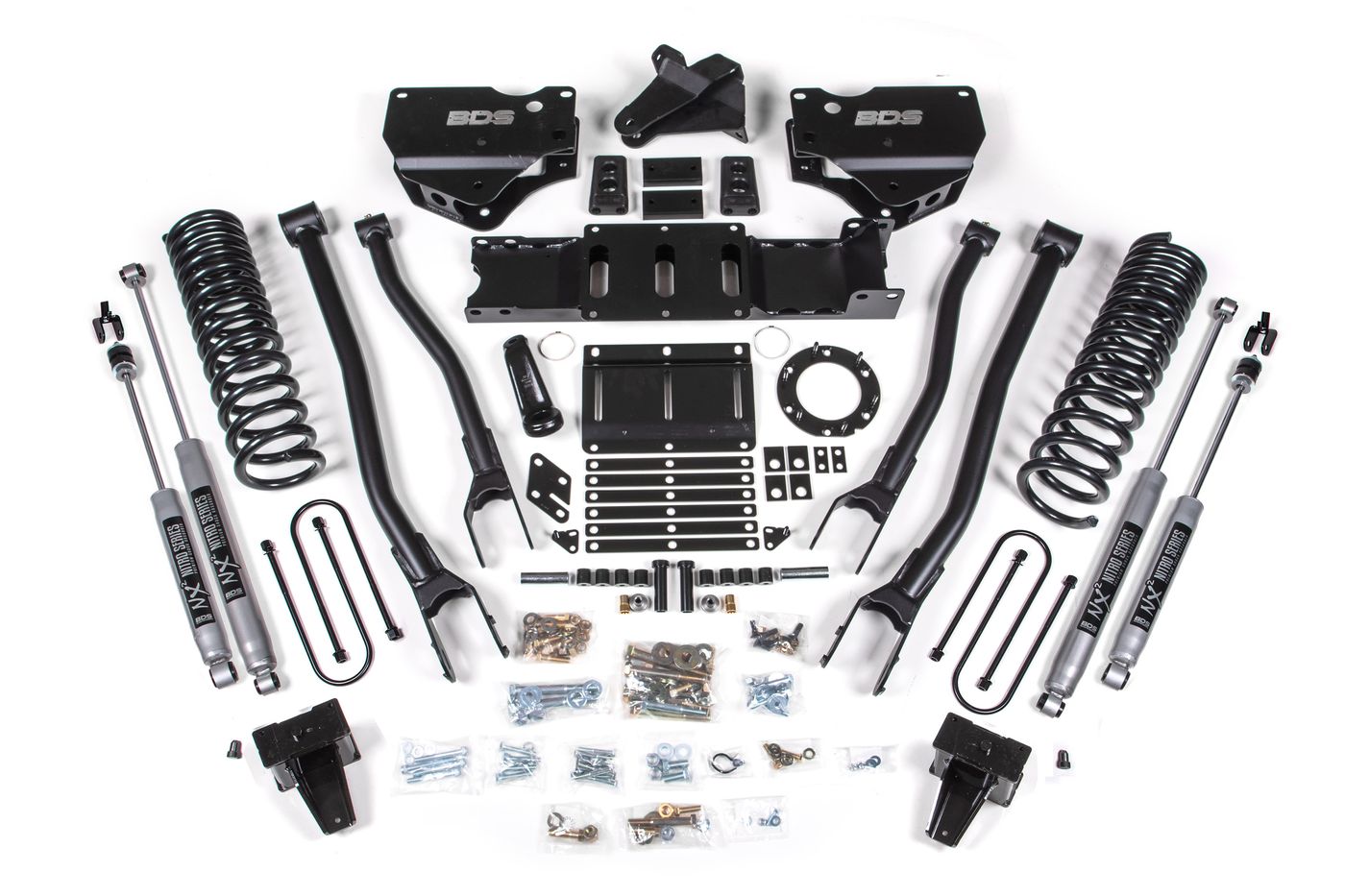

BDS 6″ Suspension Lift with NX2 shocks for 2019–2024 Ram 3500
4-Link · Part number BDS 1691H
$2,378.55the kit
Tell us your truck and we'll check this kit against it.
Choose a version
NX2 shocks Adjusters: not stated by makerFront: 4-linkFits: some different trucks. Open it to check yours. Part 1691H $2,378.55 FOX 2.0 Performance shocks Adjusters: not stated by makerFront: 4-linkFits: some different trucks. Open it to check yours. Part 1691FS $2,978.55 FOX 2.5 Performance shocks Adjusters: not stated by makerFront: 4-linkFits: some different trucks. Open it to check yours. Part 1691PS $3,458.55 FOX 2.5 Performance Elite shocks Adjusters: DSCFront: 4-linkFits: some different trucks. Open it to check yours. Part 1691FPE $5,710.65 FOX 2.5 Performance Elite shocks Adjusters: not stated by makerFront: coilovers · 4-linkFits: some different trucks. Open it to check yours. Not the same kit as the others. Open each to compare, or ask us. Part 1691PES $6,507.60 FOX 2.5 Performance Elite shocks Adjusters: not stated by makerFront: coilovers · 4-linkFits: some different trucks. Open it to check yours. Not the same kit as the others. Open each to compare, or ask us. Part 1691PESB $7,237.60How much taller your truck sits.
Better shocks ride smoother. Same height.
$2,378.55 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 19-20 Ram 3500 6 4-Link Diesel - 5 Rear Block w/ overload - 6 Bolt T-Case- NX2 Shocks
What it does
- Raises the front 6″ and the rear 5″
- Room for tires up to 37″, the maker says
- Comes with NX2 shocks
What you get
- Heavy duty 4-link improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forg
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
Raise your RAM 3500 diesel powered truck to the next heights with this 6-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. 4-Link Conversion Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. Pro-Ride Coil Springs A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Steering Correction To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Highlights
- Heavy duty 4-link improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Ram 3500 | 2019–2023 | 4WD | All |
| Ram 3500 | 2024 | 4WD | Big Horn, Laramie, Limited, Limited Longhorn, Tradesman |
