BDS 4″ Suspension Lift for 2013–2018 Ram 1500 and 2019–2021 Ram 1500 Classic

Part number BDS 1623FS

$2,621.65the kit

Tell us your truck and we'll check this kit against it.

4″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$2,621.65 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 13-18 Ram 1500 w/Air Ride 4in System

What it does

  • Raises the truck 4″
  • Room for tires up to 35″, the maker says

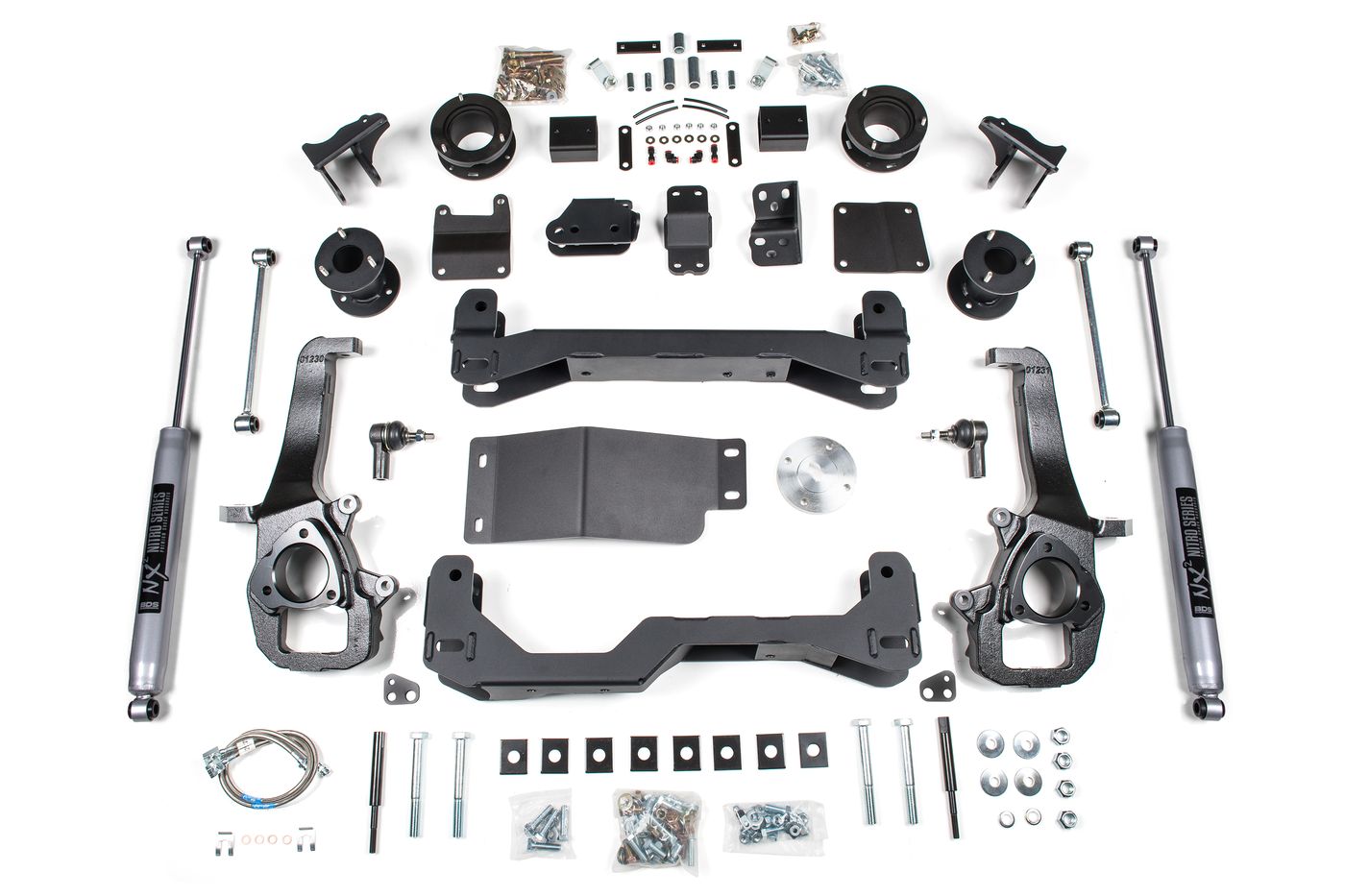

What you get

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation bra

What else you might need

About this kit

BDS steps up the performance and capability of the 2013-2018 RAM 1500 trucks, equipped with factory rear air ride, with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear this kit utilizes top mounted air bag spacers, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. Also, new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid

Highlights

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation bra

Trucks it fits

TruckYearsDriveTrims
Ram 1500 2013–2018 4WD Big Horn, Express, Laramie, Laramie Longhorn, Outdoorsman, SLT, ST, SXT, Sport, Tradesman
Ram 1500 2014–2016 All Special Service
Ram 1500 2014–2018 4WD Laramie Limited, Lone Star
Ram 1500 2015–2018 4WD Limited, Rebel
Ram 1500 2017–2018 4WD Special Service
Ram 1500 Classic 2019–2021 4WD All
