BDS 2.5″ Suspension Lift for 2019–2023 Ford Ranger
Part number BDS 1546FS
$667.12the kit
In stock at BDS
Tell us your truck and we'll check this kit against it.
Choose a version
2.5″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 1546H $367.12 2.5″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 1546FS $667.12How much taller your truck sits.
Better shocks ride smoother. Same height.
$667.12 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 2019-2021 Ford Ranger 2.5in Lift System
What it does
- Raises the truck 2.5″
What you get
- Easy, 100% Bolt-on installation
- Maintains factory like ride quality
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum perf
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit

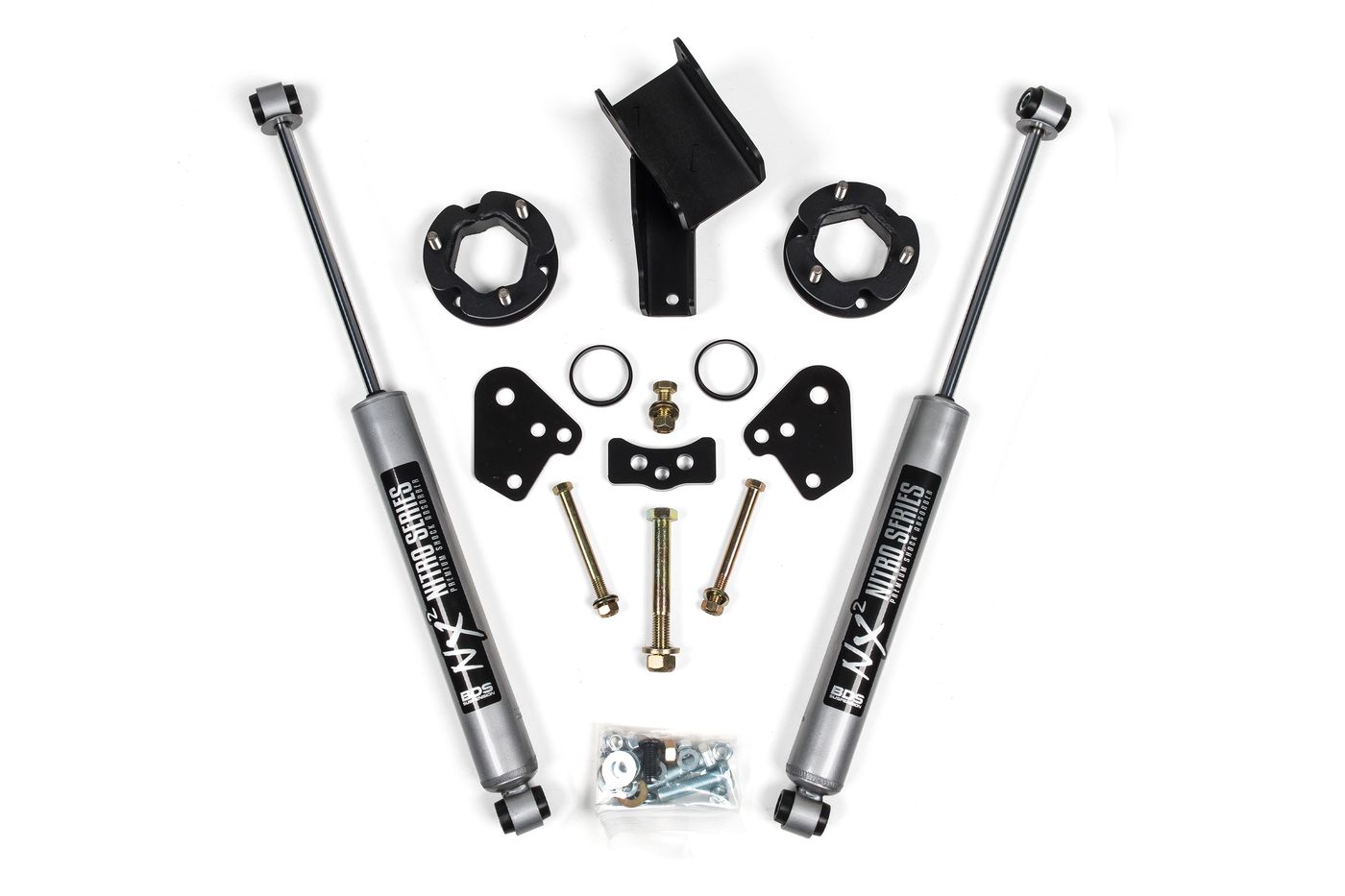

Properly level the front of your 2019-2023 Ford Ranger truck by installing this 2.5-inch leveling kit from BDS. Specially designed for the new Ranger, this 2.5" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer. To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. The lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your new Ranger the extra boost with this 2.5" leveling kit from BDS Suspension.
Highlights
- Easy, 100% Bolt-on installation
- Maintains factory like ride quality
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum perf
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Ford Ranger | 2019–2020 | 4WD | All |
| Ford Ranger | 2021–2023 | 4WD | Lariat, XL, XLT |
How it works
- True to size. Fitment measured to the inch.
