BDS 4″ Suspension Lift for 2014 Ford F-150

Part number BDS 1504FS

$2,079.70the kit

Tell us your truck and we'll check this kit against it.

4″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$2,079.70 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 2014 F150 2wd 4/2.5 Lift System

What it does

  • Raises the truck 4″
  • Room for tires up to 35″, the maker says

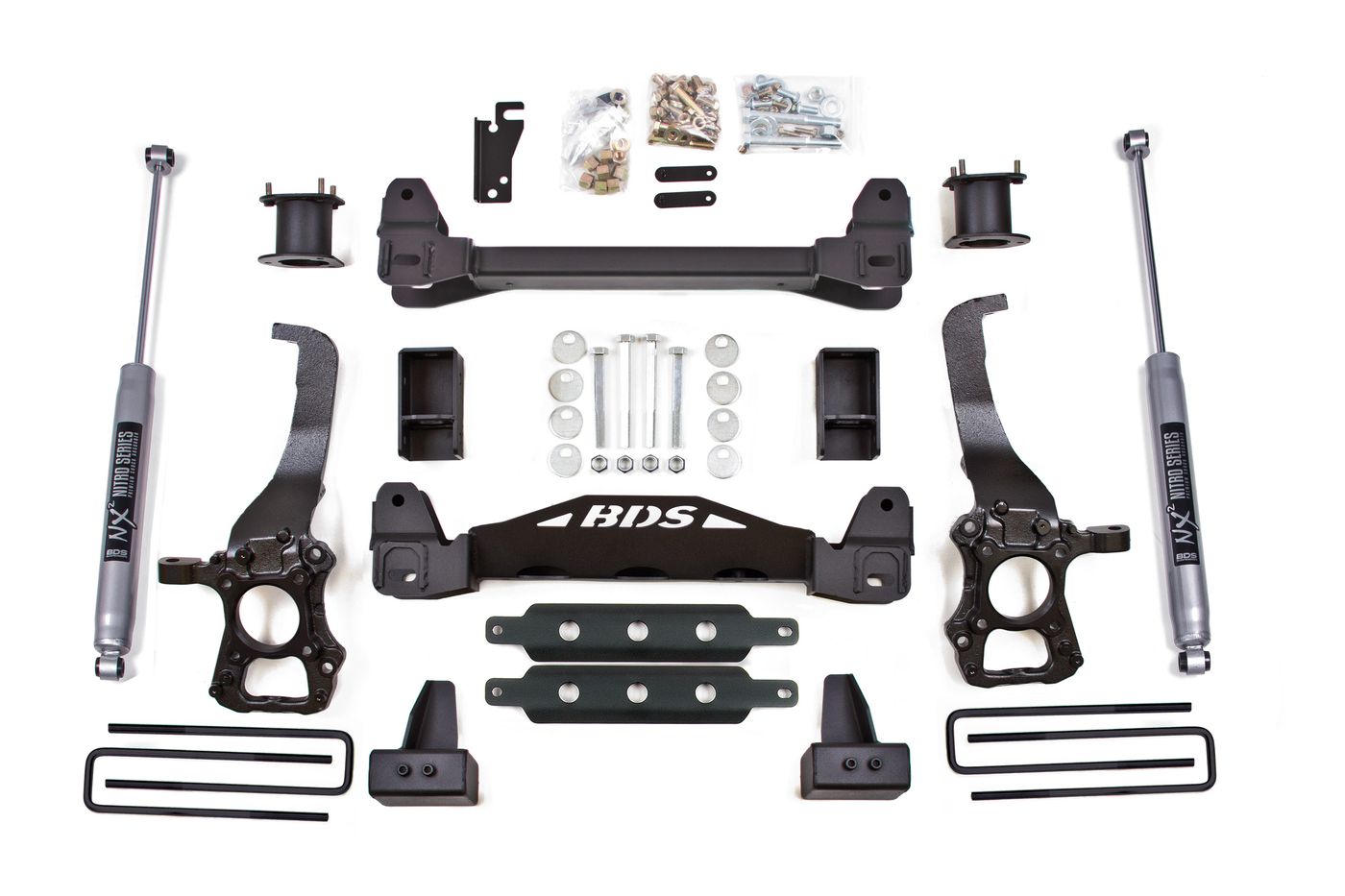

What you get

  • High clearance crossmembers improve strength and offroad capability
  • Top mounted strut spacers to provide lift and ins

What else you might need

About this kit

Improve the performance and capability of your 2014 Ford F150 2WD truck by installing a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and ability of the vehicle, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for superior on-road handling characteristics. Up front, the kit utilizes high-arched, 1/4-inch-thick steel crossmembers and a skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear, BDS utilizes high-strength cast steel lift blocks and longer u-bolts to lift and level the stance, along with NX2 Nitro or optional FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy-duty, 1/4-inch-thick, laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined ductile cast iron steering knuckle designs to work with replacement tie rod ends, maintaining steering angles for proper function and ESC compatibility.

Highlights

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and ins

Trucks it fits

TruckYearsDriveTrims
Ford F-150 2014 2WD FX2, King Ranch, Lariat, Limited, Platinum, STX, XL, XLT
