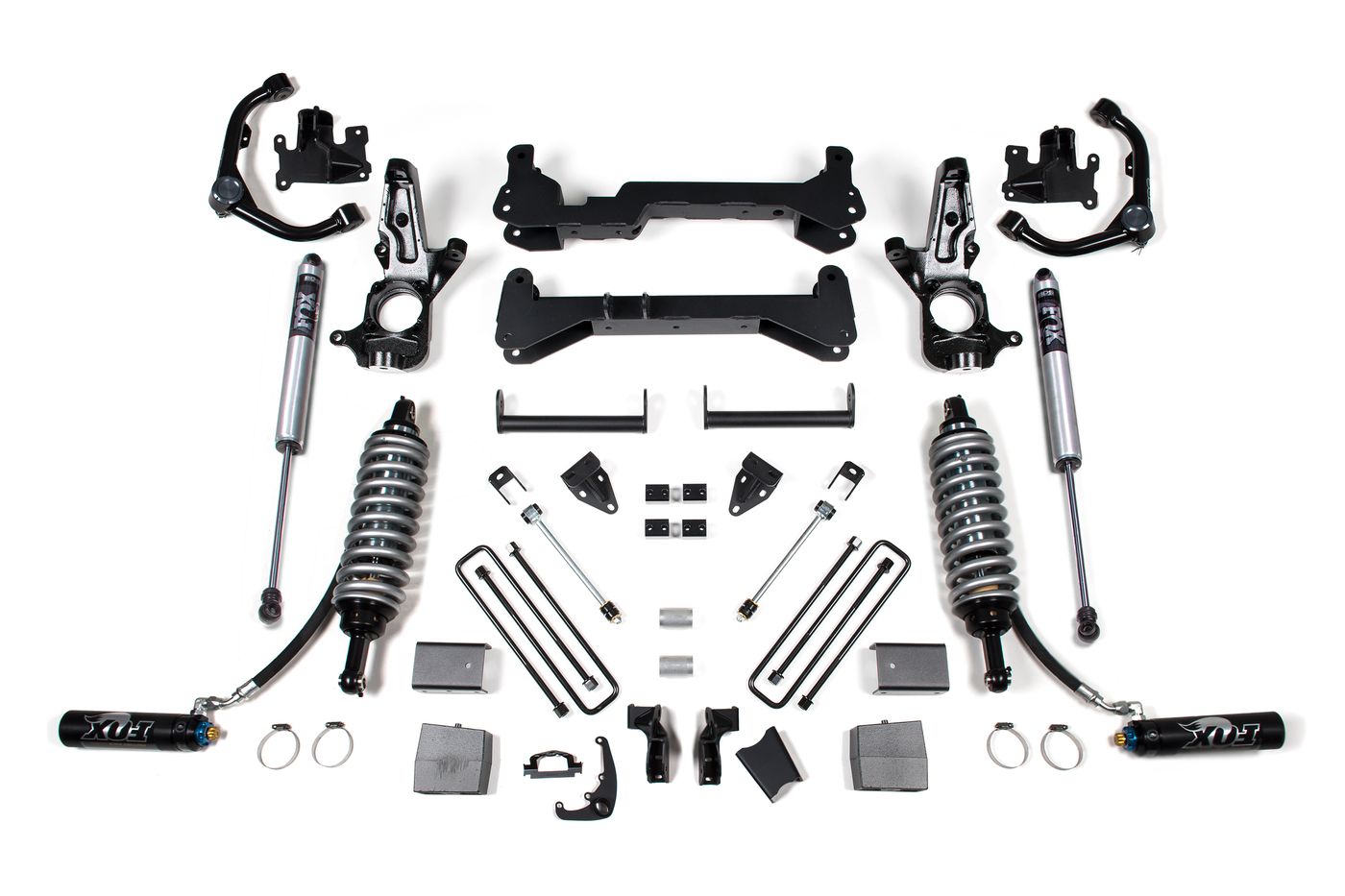

BDS 7″ Suspension Lift for 2001–2010 Chevrolet Silverado 2500 HD and 2001–2010 GMC Sierra 2500 HD
Part number BDS 149FDSC
$5,617.50the kit
Tell us your truck and we'll check this kit against it.
Choose a version
7″ Suspension Lift Not the same kit as the others. Open each to compare, or ask us. Part 149H $1,988.55 7″ Suspension Lift Not the same kit as the others. Open each to compare, or ask us. Part 149FS $2,588.55 7″ Suspension Lift Not the same kit as the others. Open each to compare, or ask us. Part 149FDSC $5,617.50How much taller your truck sits.
Better shocks ride smoother. Same height.
$5,617.50 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 01-10 C2500 HD 2wd 7/5 Block w/611
What it does
- Raises the truck 7″
- Room for tires up to 35″, the maker says
What you get
- FOX 2.5 coil-overs offer improved damper performance over stock
- Performance UCAs increase strength and al
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
BDS raises the bar with the 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 2WD trucks, featuring a 7-inch suspension lift kit with a FOX 2.5 Coilover conversion. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. These kits feature proprietary FOX 2.5 coil-over shocks, designed specifically to bolt on performance, increase travel, and soak up the roughest terrain while maintaining smooth on-road comfort. This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for superior on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coilover shocks, heavy-duty tubular upper control arms, high-arched 1/4-inch-thick steel crossmembers, along with a multipiece differential relocation bracket and heavy-duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These, combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware, and more, provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear, BDS offers both replacement lift block and complete Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block, retaining the rear. There are new U-bolts precision-tuned for the rear explicitly designed. Also for the rear are new u-bolts, and precision tuned FOX 2.0 Performance Series shocks. FOX 2.5 Coilovers FOX 2.5 coilovers provide next-level performance for both on-road and off-road comfort capabilities. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coilovers are built for abuse and packed with race-proven technology. They i
Highlights
- FOX 2.5 coil-overs offer improved damper performance over stock
- DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
- Performance UCAs increase strength and al
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Silverado 2500 HD | 2001–2002 | 2WD | All |
| Chevrolet Silverado 2500 HD | 2003 | 2WD | Base, LS, LT |
| Chevrolet Silverado 2500 HD | 2004–2010 | 2WD | All |
| GMC Sierra 2500 HD | 2001–2010 | 2WD | All |
More for the Chevrolet Silverado 2500 HD & 3500 HD and the GMC Sierra 2500 HD & 3500 HD.
How it works
- Each truck's own page has its bolt pattern, tire sizes, and the wheels and kits that fit.
- True to size. Fitment measured to the inch.
