BDS 5.5″ Suspension Lift for 2007–2017 Jeep Wrangler and 2018 Jeep Wrangler JK
Long Arm · Part number BDS 1422H
$3,165.38the kit
Tell us your truck and we'll check this kit against it.
Choose a version
5.5″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 1422H $3,165.38 5.5″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 1422FS $3,765.38How much taller your truck sits.
Better shocks ride smoother. Same height.
$3,165.38 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 2007-18 JK Rubicon 2Dr 5.5 Long Arm Kit
What it does
- Raises the truck 5.5″
- Room for tires up to 37″, the maker says

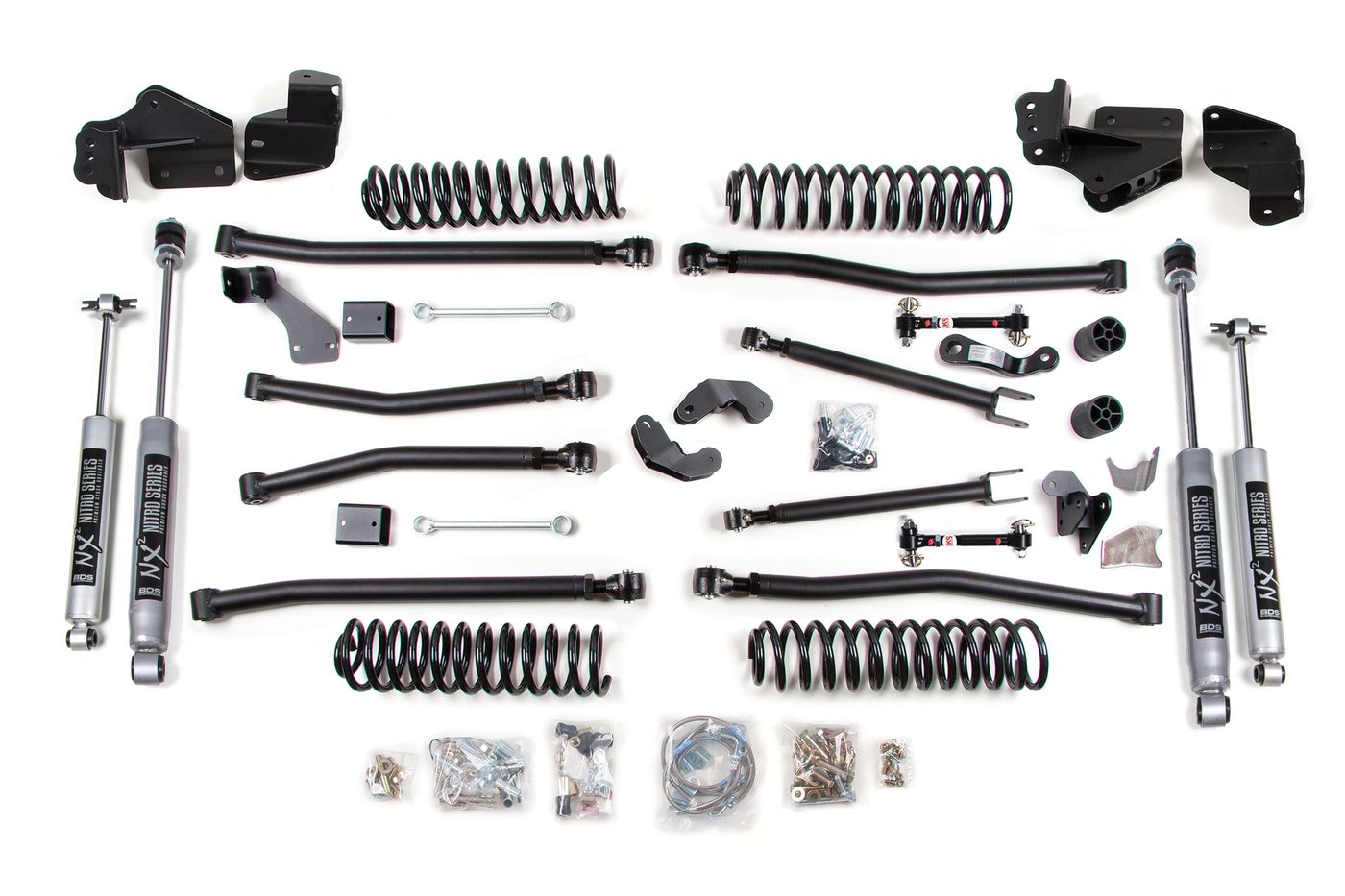

What you get
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
Maximize the capability of your 2007-2018 Jeep Wrangler 2 Door with this 5.5-inch lift kit featuring a long-arm conversion from BDS Suspension. Designed to improve stance, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This 4-inch lift kit system enhances the factory 4-link by introducing a redesigned 4-link long arm, which improves articulation and offers better control throughout wheel travel. Up front, the lift kit includes new pivot mounts that are constructed from 1/4" thick steel and work with the latest heavy-duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4" Pro-Ride coil springs capable of full coil bind, and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, sway bar links, a front track bar relocation bracket, and a pitman arm, all designed to improve steering and handling geometry. In the rear, the kit utilizes new pivot mounts designed to work with the latest heavy-duty lower flex arms and adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. Round out this 4" lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. Long Arm Conversion Upgrading the standard control arms to long arms adds strength, improves handling, and takes off-road articulation to the next level. This upgrade consists of massive 1/4" steel frame-mounted brackets to install the oversized upper and lower formed long arms. The arms are designed for maximum tire clearance, allowing the stock control arm tabs to remain in place on the vehicle. The upper arms are made of solid stock, while the heavy-wall tubular lower arms utilize oversized, greaseable polyurethane bush
Highlights
- Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Jeep Wrangler | 2007–2011 | All | All |
| Jeep Wrangler | 2012–2017 | All | Rubicon, Sahara, Sport |
| Jeep Wrangler | 2014 | All | Willys Wheeler |
| Jeep Wrangler | 2016 | All | 75th Anniversary, Sport S |
| Jeep Wrangler JK | 2018 | All | Rubicon, Sahara, Sport, Sport S |
