BDS 6.5″ Suspension Lift for 2007–2017 Jeep Wrangler and 2018 Jeep Wrangler JK

Long Arm · Part number BDS 1409H

$3,300.43the kit

Tell us your truck and we'll check this kit against it.

6.5″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$3,300.43 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 2007-13 JK 4Dr 6.5 Long Arm Kit

What it does

  • Raises the truck 6.5″
  • Room for tires up to 37″, the maker says

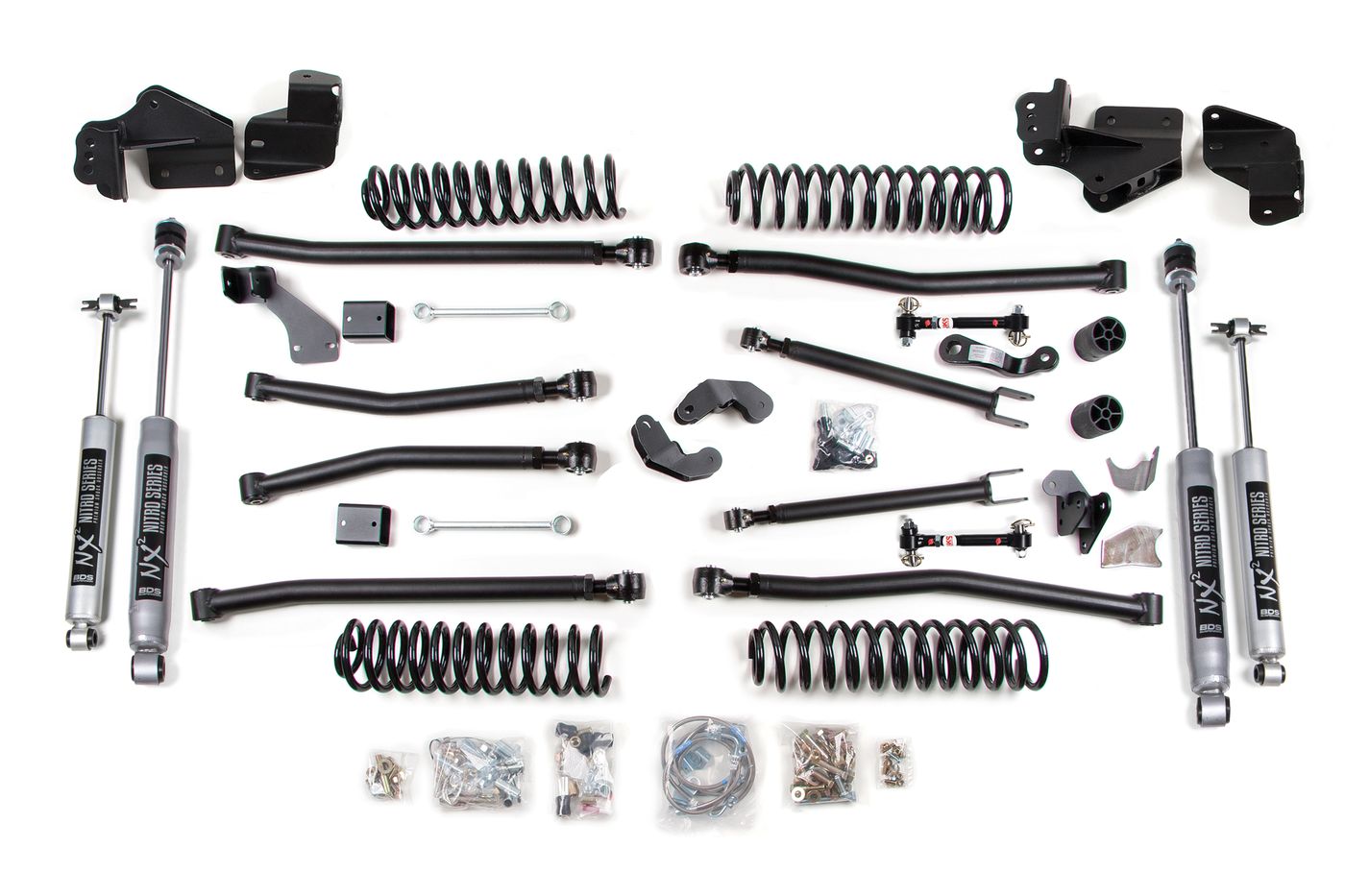

What you get

  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended

What else you might need

About this kit

Maximize the capability of your 2007-2018 Jeep Wrangler 4 Door with this 6.5-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This 6.5-inch lift kit system improves on the factory 4-link with a redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel. Up front the lift kit includes new pivot mounts that are constructed from 1/4" thick steel and work with the new heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4" Pro-Ride coil springs capable of full coil bind and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry. In the rear the kit utilizes new pivot mounts designed to work with the new heavy duty lower flex arms and adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 4" lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. Long Arm Conversion Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4" steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation. Pro-Ride Coil Sprin

Highlights

  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended

Trucks it fits

All 11 fitments
TruckYearsDriveTrims
Jeep Wrangler 2007–2010 4WD Unlimited Sahara, Unlimited X
Jeep Wrangler 2007–2017 All Unlimited Rubicon
Jeep Wrangler 2010 4WD Unlimited Mountain, Unlimited Sport
Jeep Wrangler 2011 All Unlimited 70th Anniversary, Unlimited X
Jeep Wrangler 2011–2017 All Unlimited Sahara, Unlimited Sport
Jeep Wrangler 2012 All Unlimited, Unlimited Altitude, Unlimited Mountain
Jeep Wrangler 2014 All Unlimited Willys Wheeler
Jeep Wrangler 2015 All Unlimited Altitude, Unlimited Hard Rock
Jeep Wrangler 2016 All Unlimited 75th Anniversary, Unlimited Black Bear, Unlimited Sport S
Jeep Wrangler 2017 All Unlimited Smoky Mountain, Unlimited Winter Edition
Jeep Wrangler JK 2018 All Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited Willys Wheeler
