BDS 8″ Suspension Lift for 1977–1987 GMC Jimmy and 12 more trucks

Part number BDS 134H

$1,704.16the kit

Tell us your truck and we'll check this kit against it.

8″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$1,704.16 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 77-87 3/4 ton PU/Blaz/Jim 8/8 Springs

What it does

  • Raises the truck 8″
  • Room for tires up to 38″, the maker says

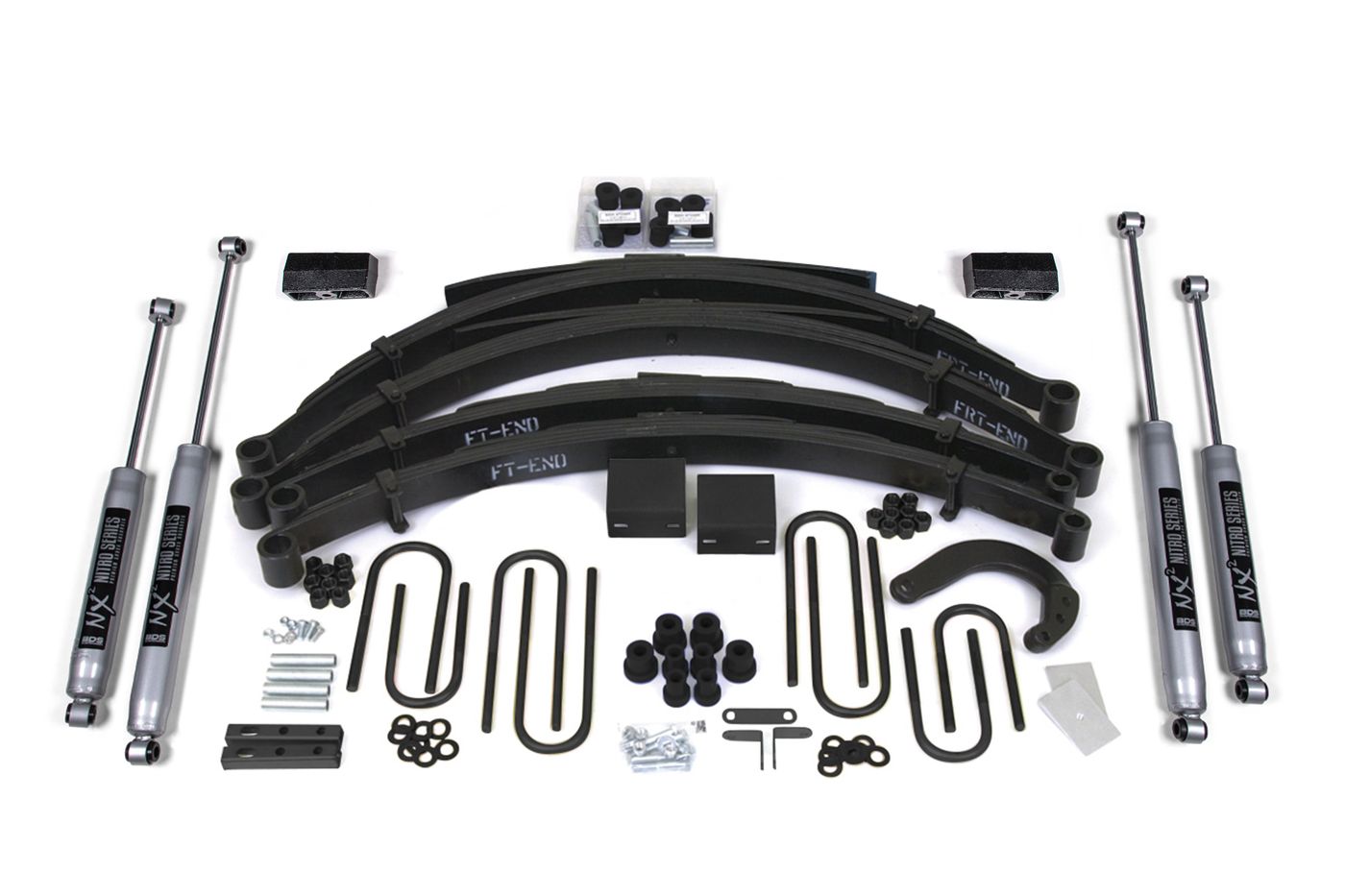

What you get

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • New steering arm maintains proper steering angles for improved handling
  • Cast steel blocks and add-a-

What else you might need

About this kit

Go big with your 1977-1987 Chevy and GMC 3/4 ton truck or SUV to raise the bar to new heights with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm and 3" steering block for steering correction, brake line brackets, sway bar drop brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a set of Glide-Ride leaf springs for the ultimate performance on and off road, new u-bolts and a matching set of NX2 Nitro shocks. Glide-Ride Leaf Springs Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Highlights

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • New steering arm maintains proper steering angles for improved handling
  • Cast steel blocks and add-a-

Trucks it fits

All 17 fitments
TruckYearsDriveTrims
Chevrolet Blazer 1987 All All
Chevrolet K20 1977–1986 All All
Chevrolet K20 Suburban 1977–1986 All All
Chevrolet K5 Blazer 1977–1984 4WD All
Chevrolet K5 Blazer 1985–1986 All All
Chevrolet V20 1987 All All
Chevrolet V20 Suburban 1987 All All
GMC Jimmy 1977 4WD All
GMC Jimmy 1978–1982 4WD Base, High Sierra, Sierra Classic, Sierra Grande
GMC Jimmy 1983–1984 4WD All
GMC Jimmy 1985–1987 All All
GMC K25 1977–1978 All All
GMC K25 Suburban 1977–1978 All All
GMC K2500 1979–1986 All All
GMC K2500 Suburban 1979–1986 All All
GMC V2500 1987 All All
GMC V2500 Suburban 1987 All All
How it works
  • True to size. Fitment measured to the inch.
