BDS 6″ Suspension Lift for 1977–1987 GMC Jimmy and 12 more trucks
Part number BDS 129FS
$1,719.95the kit
Tell us your truck and we'll check this kit against it.
Choose a version
6″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 129H $1,119.95 6″ Suspension Lift The maker lists no difference between these two except the part number and the price. Part 129FS $1,719.95How much taller your truck sits.
Better shocks ride smoother. Same height.
$1,719.95 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 77-87 1/2 ton PU/Blaz/Jim 6/6 Block AAL
What it does
- Raises the truck 6″
- Room for tires up to 35″, the maker says

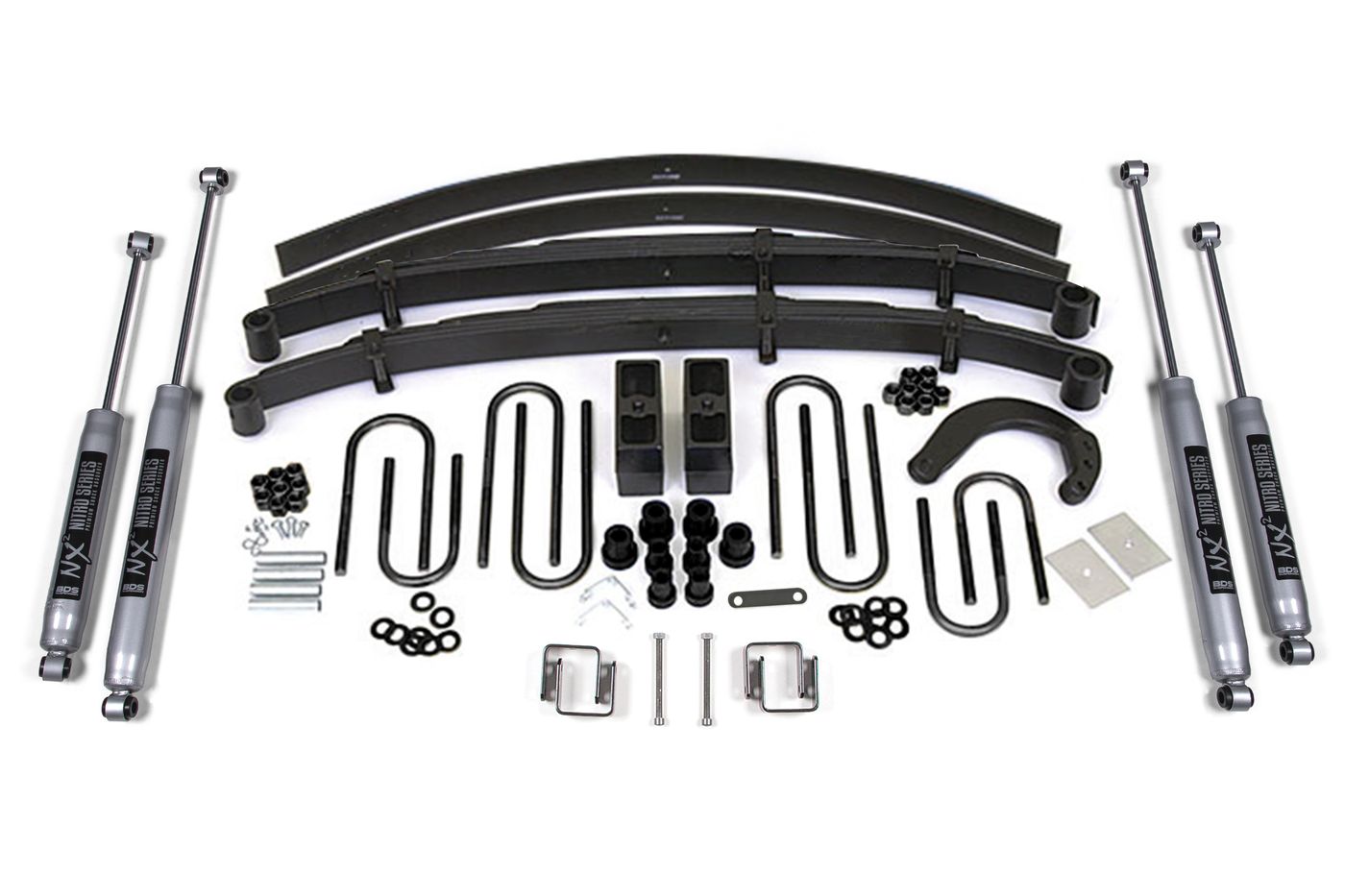

What you get
- Easy, 100% Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- New steering arm maintains proper steering angles for improved handling
- Cast steel blocks and add-a-
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
Improve the style and handling of your 1977-1987 Chevy and GMC 1/2 ton truck or SUV with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks. Glide-Ride Leaf Springs Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Highlights
- Easy, 100% Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- New steering arm maintains proper steering angles for improved handling
- Cast steel blocks and add-a-
Trucks it fits
All 16 fitments
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Blazer | 1987 | All | All |
| Chevrolet K10 | 1977–1986 | All | All |
| Chevrolet K10 Suburban | 1977–1986 | All | All |
| Chevrolet K5 Blazer | 1977–1986 | All | All |
| Chevrolet V10 | 1987 | All | All |
| Chevrolet V10 Suburban | 1987 | All | All |
| GMC Jimmy | 1977 | 4WD | All |
| GMC Jimmy | 1978–1982 | 4WD | Base, High Sierra, Sierra Classic, Sierra Grande |
| GMC Jimmy | 1983–1984 | 4WD | All |
| GMC Jimmy | 1985–1987 | All | All |
| GMC K15 | 1977–1978 | All | All |
| GMC K15 Suburban | 1977–1978 | All | All |
| GMC K1500 | 1979–1986 | All | All |
| GMC K1500 Suburban | 1979–1986 | All | All |
| GMC V1500 | 1987 | All | All |
| GMC V1500 Suburban | 1987 | All | All |
How it works
- True to size. Fitment measured to the inch.
