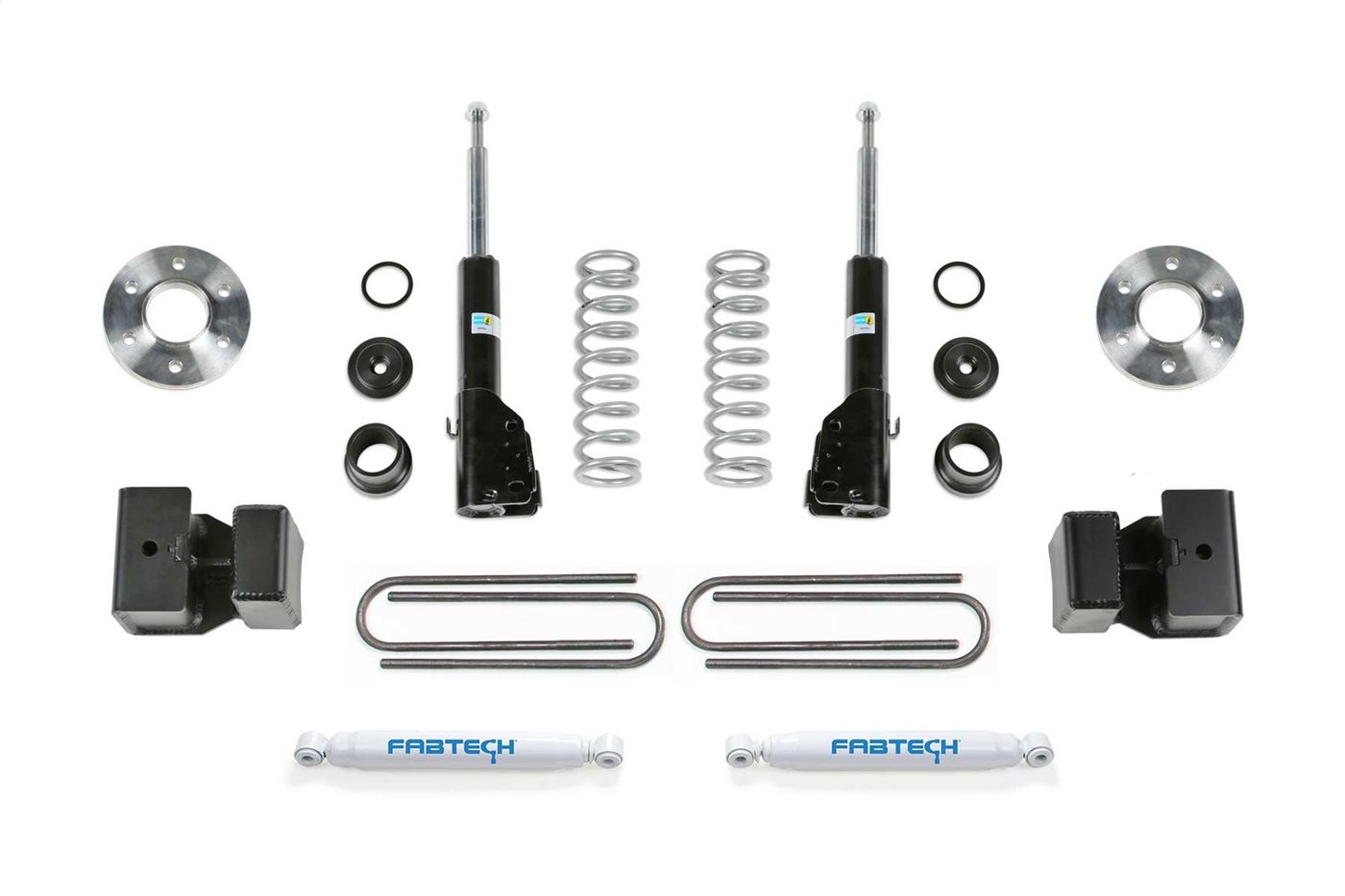

Fabtech 1.5″ Lift Upgrade for 2015–2021 Mercedes-Benz Sprinter 3500

Part number Fabtech K9007

$2,368.32the kit

Tell us your truck and we'll check this kit against it.

1.5″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$2,368.32 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

What it does

  • Raises the truck 1.5″

What you get

  • The High-Quality Cold-Wound Coil Springs For Longevity And Ride Quality
  • Billet Aluminum Upper And Lower Coils Seats Properly Locate The Coil Springs
  • Increases Ride Height For More Ground Clearance And Helps Reduce Body Sway
  • Retains Factory Travel And Alignment

What else you might need

Tires Fabtech says fit

1.5 in.; Front Bilstein B4 Struts & Rear Performance Shocks; Use 275/75R16 Front Tire w/16X5.5 Wheel w/8 in. BS w/Minor Trimming~Use 275/75R16 Rear Tire w/16X5.5 Wheel w/-2.16 in. BS

About this kit

The front suspension of a Sprinter van utilizes a MacPherson strut to provide damping. The stock struts leave a lot to be desired on their own once you upfit the van for overland use or haul cargo. Fabtech offers a solution to this problem by utilizing a Bilstein strut with their high-quality cold wound coil spring. The coil springs are positioned around the strut bodies. They provide an additional lift to the vehicle of 1 in.-1.5 in. over stock. This creates increased ground clearance and clearance of larger tires for off-road use. Additionally, they help reduce sway for vans with full interior build-outs or hauling heavy cargo. The coil springs utilize billet aluminum upper and lower coils seats that slide over the strut. They are positioned to the correct ride height and create a secure mounting for the springs. To further enhance the vehicle's suspension Fabtech recommends their Auxiliary Front Shock Mounts with Dirt Logic 2.25 shocks for a complete upgrade. This combination will help improve the ride characteristics of the vehicle well beyond stock. It will provide a very compliant highway ride while improving performance for off-highway use.

Highlights

  • The High-Quality Cold-Wound Coil Springs For Longevity And Ride Quality
  • Billet Aluminum Upper And Lower Coils Seats Properly Locate The Coil Springs
  • Increases Ride Height For More Ground Clearance And Helps Reduce Body Sway
  • Can Be Paired With Fabtech Auxiliary Shock Mounts And Dirt Logic 2.25 Shocks For A Complete Upgrade
  • Retains Factory Travel And Alignment

Trucks it fits

TruckYearsDriveTrims
Mercedes-Benz Sprinter 3500 2015–2021 4WD All
