Fabtech 4″ Suspension Lift for 2016–2021 Toyota Tundra

Ball Joint Control Arm · Part number Fabtech K7050DL

$3,873.69the kit

Tell us your truck and we'll check this kit against it.

4″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$3,873.69 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

What it does

  • Raises the truck 4″

What you get

  • Simplified Design With Fast Install
  • Steering Knuckles Retain Proper ESC
  • No Loss Of Ground Clearance

What else you might need

About this kit

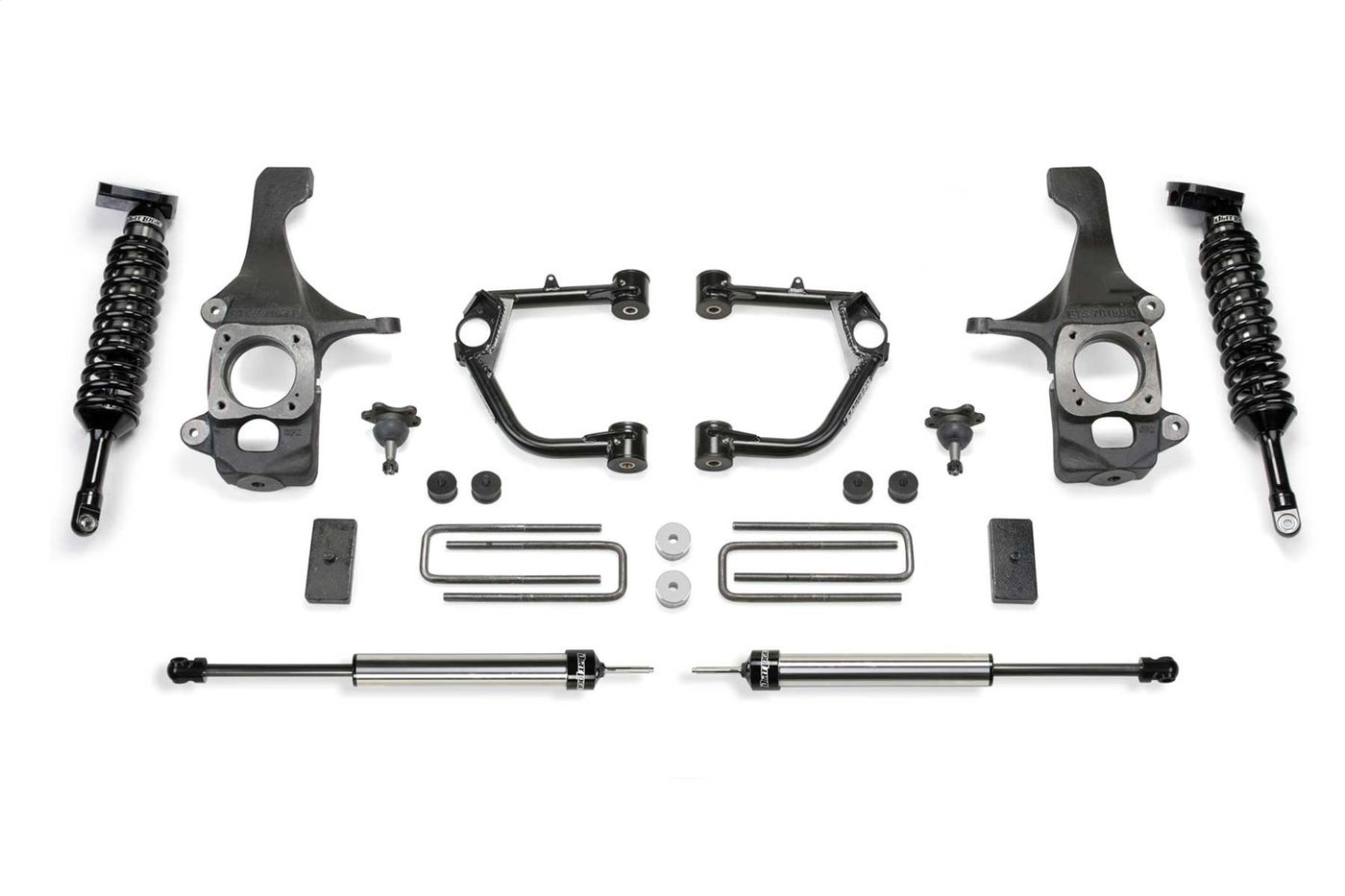

This new 4 System capitalizes on Toyota Tundras large wheelwell opening to allow use of 35 tall tires with minimum lift height. The design of this 4 System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price. The system includes replacement upper control with a .120 wall DOM arm with heavy duty extended range ball joints that provide additional strength to the front suspension. Heavy duty extended length steering knuckles are inclu ded to provide proper functionality of the factory ESC (Electronic Stability Control) with 35 tall tires. The knuckles retain the stock track width keeping the tires under the front fenders. The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1 lift block and u-bolt system to level the stance of the vehicle. The 4 System is available with a spacer system to retain the factory Coilover shocks and rear Performance shocks.

Highlights

  • Simplified Design With Fast Install
  • Steering Knuckles Retain Proper ESC
  • No Loss Of Ground Clearance

Trucks it fits

TruckYearsDriveTrims
Toyota Tundra 2016–2018 All All
Toyota Tundra 2019 All 1794 Edition, Limited, Platinum, SR, SR5
Toyota Tundra 2020–2021 All All
