Fabtech 8″ Suspension Lift with Fabtech shocks for 2001–2006 Chevrolet Silverado 2500 HD and 3 more trucks
Performance · Part number Fabtech K1015DL
$5,640.83the kit
Tell us your truck and we'll check this kit against it.
How much taller your truck sits.
Better shocks ride smoother. Same height.
$5,640.83 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
What it does
- Raises the truck 8″
- Comes with Fabtech shocks
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
Tires Fabtech says fit
w/DLSS Shocks; 8 in. Lift; Requires Exhaust Modification~8 in. Lift Use 37/12.50R17 Tire w/17x9 Wheel w/4.625 in BS w/Minor Trimming~Will Not Fit Vehicles w/Quadrasteer~8 in. Lift Use 37/13.50R20 Tires w/20X10 Wheels w/5 in. BS w/Minor Trim~Can Not Use OEM Wheel And Tire~Will Experience Some Loss Of Turning Radius~8 in. Lift Use 37/14.00R18 Tire w/18X9 Wheels w/5 in. BS w/Minor Trim~May Require Driveshaft Modification~Welding Required~Incl. Front Differential Drop Brackets/Skid Plate/CV Spacers~Front And Rear Shocks/All Required Hardware~Blocks/U-Bolts/Impact Strut And Rear Mount/Add-A-Leafs~Spindles/Weld-In Plate/Front Bump Stop Brackets/Rear Bump Stop~Crossmembers And Support Tube/Carrier Bearing Spacer/Ball Joints~Upper Control Arms/Torsion Bar Drop Bracket
About this kit

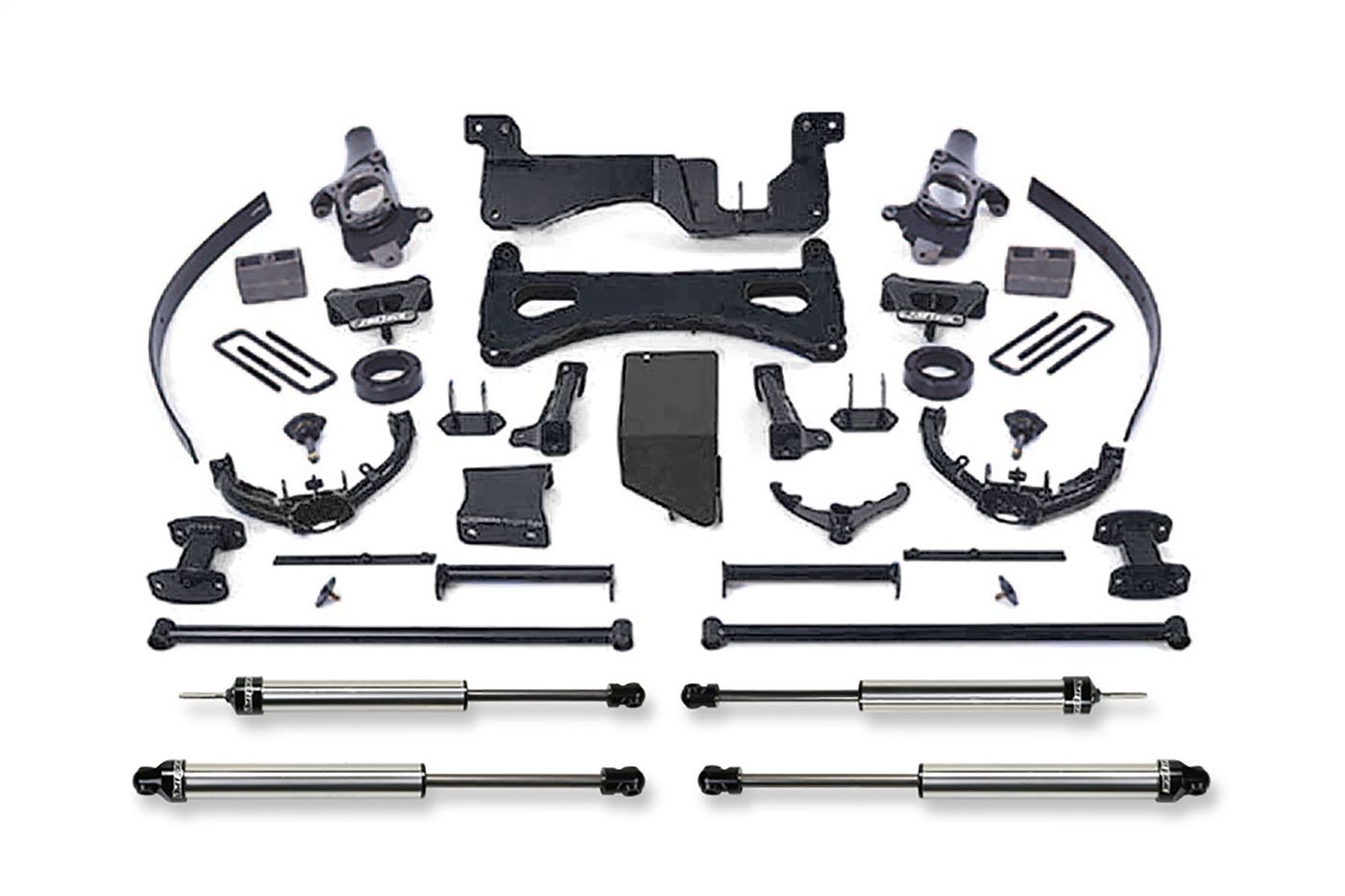

The 8" Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4" thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech’s combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37" tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech’s optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4" block kit with 2" add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket.
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Silverado 2500 HD | 2001–2006 | All | All |
| Chevrolet Silverado 3500 | 2001–2006 | All | All |
| GMC Sierra 2500 HD | 2001–2006 | All | All |
| GMC Sierra 3500 | 2001–2006 | All | All |
More for the Chevrolet Silverado 2500 HD & 3500 HD and the GMC Sierra 2500 HD & 3500 HD.
How it works
- Each truck's own page has its bolt pattern, tire sizes, and the wheels and kits that fit.
- True to size. Fitment measured to the inch.
