Fabtech 6″ Suspension Lift with Fabtech shocks for 2001–2010 Chevrolet Silverado 2500 HD and 9 more trucks
Performance · Part number Fabtech K1014M
$3,192.78the kit
Tell us your truck and we'll check this kit against it.
How much taller your truck sits.
Better shocks ride smoother. Same height.
$3,192.78 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
What it does
- Raises the truck 6″
- Comes with Fabtech shocks

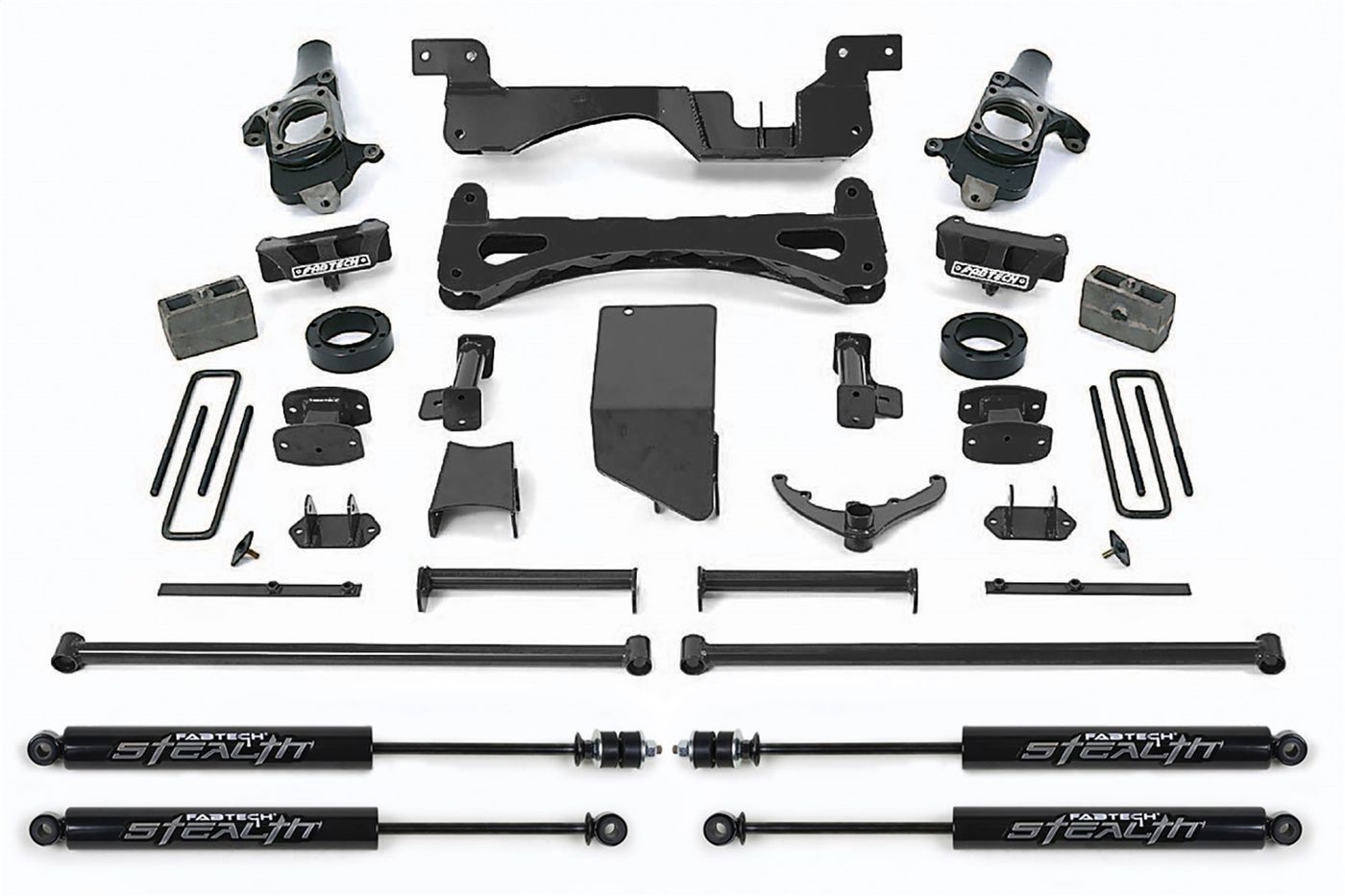

What you get
- Heavy Duty 1/4? Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Torsion Bar Drop Brackets
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
Tires Fabtech says fit
w/Stealth Monotube Shocks; 6 in. Lift; Requires Exhaust Modification~6 in. Lift Use 315/70R17 Tire w/17x9 Wheel w/4.625 in. BS w/Minor Trimming~6 in. Lift Use 325/65R18 Tire w/18x9 Wheel w/5 in. BS w/Minor Trimming~If Equipped w/17 in. Factory Wheels Must Use 17 in. Or Larger Aftermarket~6 in. Lift Use 315/75R16 Tire w/16x8 Wheels w/4.625 in. BS w/Minor Trimming~Will Not Fit Vehicles w/Quadrasteer~6 in. Lift Use 35/12.50R20 Tire w/20X8.5 Wheels w/4.625 BS w/Minor Trim~Can Not Use OEM Wheel And Tire~May Require Driveshaft Modification~Welding Required~Incl. Front Differential Drop Brackets/Skid Plate/CV Spacers~Front And Rear Shocks/All Required Hardware~Spindles/Sway Bar Link Kit/Front Bump Stop Brackets/4 in. Blocks~Weld-In Plate/Carrier Bearing Drop Bracket/Torsion Bar Drop Bracket~Crossmembers And Support Tube/U-Bolts
About this kit
Our 6? system for 2001-10 GM HD’s has been designed to provide superior suspension performance for daily driving or for offroad. This is accomplished using our proven one piece lower control arm crossmembers and extended length steering knuckles with a multitude of shock absorber options. The 1/4? thick arched lower control arms crossmembers include an integrated front differential skid plate, crossmembers support tubes and rear impact struts to distribute front suspension impact loads through the frame evenly. A new knuckle design was introduced in 2007 with this system that provides reduced track width to keep the tires under the fenders. This system also includes torsion bar drop mounts, extended length sway bar links with urethane bushings, front and rear bump stop brackets, and rear blocks.
Highlights
- Heavy Duty 1/4? Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Torsion Bar Drop Brackets
- Billet Sway Bar End Links
- Rear Block & U-bolt Kit
Trucks it fits
All 10 fitments
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Silverado 2500 HD | 2001–2010 | All | All |
| Chevrolet Silverado 2500 HD Classic | 2007 | All | All |
| Chevrolet Silverado 3500 | 2001–2006 | All | All |
| Chevrolet Silverado 3500 Classic | 2007 | All | All |
| Chevrolet Silverado 3500 HD | 2007–2010 | All | All |
| GMC Sierra 2500 HD | 2001–2010 | All | All |
| GMC Sierra 2500 HD Classic | 2007 | All | All |
| GMC Sierra 3500 | 2001–2006 | All | All |
| GMC Sierra 3500 Classic | 2007 | All | All |
| GMC Sierra 3500 HD | 2007–2010 | All | All |
More for the Chevrolet Silverado 2500 HD & 3500 HD and the GMC Sierra 2500 HD & 3500 HD.
How it works
- Each truck's own page has its bolt pattern, tire sizes, and the wheels and kits that fit.
- True to size. Fitment measured to the inch.
