BDS 5″ Suspension Lift with FOX 2.5 Performance shocks for 2020–2026 Chevrolet Silverado 2500 HD and 3 more trucks

Part number BDS 767FPP

$3,737.45the kit

Tell us your truck and we'll check this kit against it.

5″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$3,737.45 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: BDS 020-2025 Chevrolet Silverado/GMC Sierra 2500HD/3500HD 4wd 5 NTBD Suspension Lift System w/ Overloads 4.5 Rear Lift Block w/ overload - Fox 2.5 PS HTO Shocks Front/Rear - 767FPP

What it does

  • Raises the front 5″ and the rear 4.5″
  • Room for tires up to 37″, the maker says
  • Comes with FOX 2.5 Performance shocks

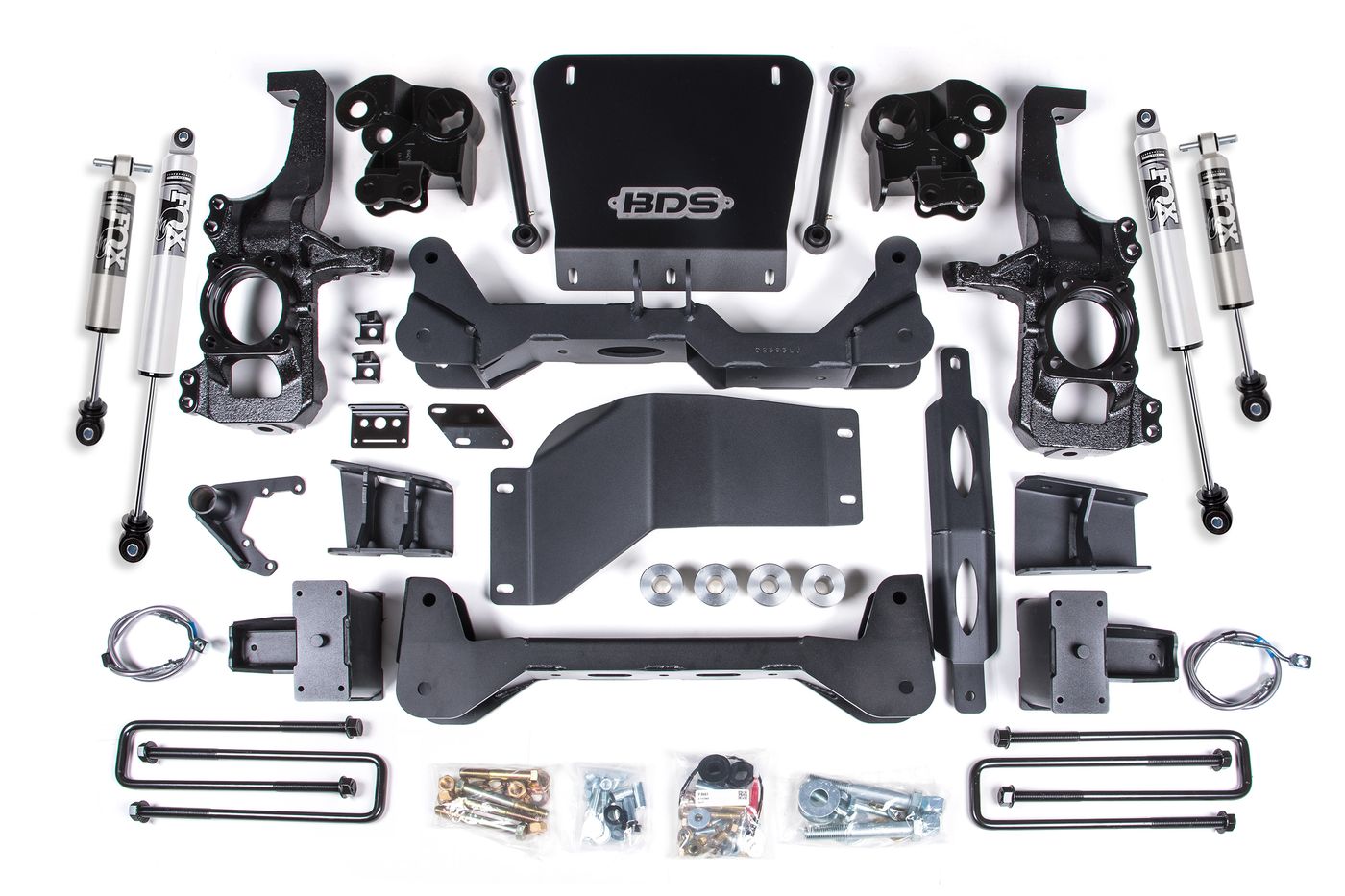

What you get

  • High clearance design with no torsion bar drop brackets.
  • Robust steering knuckles maintain ESC system compliance.
  • HD skid plate system improved off road protection.
  • Multpoint differential relocation bracke

What else you might need

About this kit

Take your 2020-2026 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level by installing this 5-inch lift kit by BDS Suspension. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. Designed to improve the stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great onroad handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, stainless steel brake lines, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers replacement lift blocks and u-bolts to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included, BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly are a matching set of FOX 2.5 HTO Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at t

Highlights

  • High clearance design with no torsion bar drop brackets.
  • Robust steering knuckles maintain ESC system compliance.
  • HD skid plate system improved off road protection.
  • Multpoint differential relocation bracke

Trucks it fits

All 10 fitments
TruckYearsDriveTrims
Chevrolet Silverado 2500 HD 2020 4WD High Country, LT, LTZ, WT
Chevrolet Silverado 2500 HD 2021–2023 4WD All
Chevrolet Silverado 2500 HD 2024–2025 4WD LT, LTZ
Chevrolet Silverado 2500 HD 2024–2026 4WD Custom, High Country, WT
Chevrolet Silverado 2500 HD 2026 All LT, LTZ
Chevrolet Silverado 3500 HD 2020–2025 4WD High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD 2026 4WD All
GMC Sierra 2500 HD 2020–2023 4WD All
GMC Sierra 2500 HD 2024–2026 4WD AT4, Denali, Denali Ultimate, Pro, SLE, SLT
GMC Sierra 3500 HD 2020–2026 4WD All
