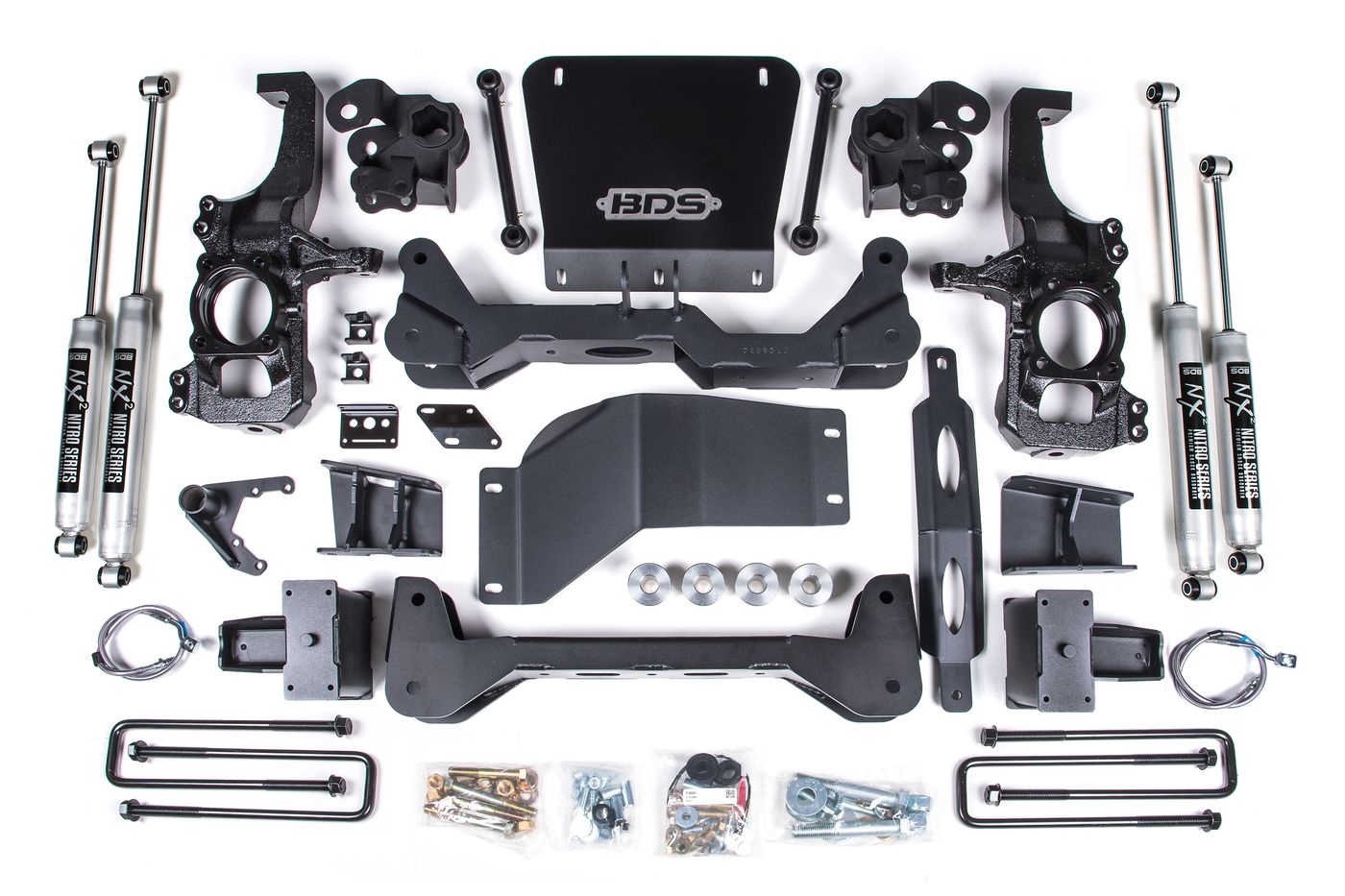

BDS 6.5″ Suspension Lift for 2020–2026 Chevrolet Silverado 2500 HD and 3 more trucks
Part number BDS 753H
$2,545.53the kit
Tell us your truck and we'll check this kit against it.
How much taller your truck sits.
Better shocks ride smoother. Same height.
$2,545.53 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 2020-2021 2500HD/3500HD 6.5in NTBD Suspension Lift System W/O Overloads
What it does
- Raises the truck 6.5″
- Room for tires up to 38″, the maker says
What you get
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved off-road protection
- Multipoint differential re
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
Take your 2020-2026 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level by installing this 6.5-inch lift kit by BDS Suspension. For maximum ground clearance, BDS designed a No-Torsion Bar Drop System, where the torsion bars are mounted directly to the top of the lower a-arm, eliminating the need to drop the torsion bar cross-member. Designed to improve the stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for superior on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers, along with a multipiece differential relocation bracket and heavy-duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These, combined with the provided sway bar drops, stainless steel brake lines, supplied hardware, and more, provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear, BDS offers replacement lift blocks and U-bolts to lift and level the stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included are BDS supplies, which provide brake line and ABS line relocation brackets, allowing the use of factory brake lines. Lastly, there is a matching set of NX2 Nitro or FOX 2.0 Performance Series shocks. High Clearance Crossmembers BDS maximizes ground clearance with their heavy-duty, 1/4-inch-thick, laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steerin
Highlights
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved off-road protection
- Multipoint differential re
Trucks it fits
All 9 fitments
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Silverado 2500 HD | 2020–2023 | 4WD | All |
| Chevrolet Silverado 2500 HD | 2024–2025 | 4WD | LT, LTZ |
| Chevrolet Silverado 2500 HD | 2024–2026 | 4WD | Custom, High Country, WT |
| Chevrolet Silverado 2500 HD | 2026 | All | LT, LTZ |
| Chevrolet Silverado 3500 HD | 2020–2025 | 4WD | High Country, LT, LTZ, WT |
| Chevrolet Silverado 3500 HD | 2026 | 4WD | All |
| GMC Sierra 2500 HD | 2020–2023 | 4WD | All |
| GMC Sierra 2500 HD | 2024–2026 | 4WD | AT4, Denali, Denali Ultimate, Pro, SLE, SLT |
| GMC Sierra 3500 HD | 2020–2026 | 4WD | All |
