BDS 4″ Suspension Lift with FOX 2.5 Performance Elite shocks for 2011–2016 Ford F-250 Super Duty and 2011–2016 Ford F-350 Super Duty
Part number BDS 592FPE
$5,160.22the kit
Tell us your truck and we'll check this kit against it.
How much taller your truck sits.
Better shocks ride smoother. Same height.
$5,160.22 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 2011-2016 Ford F250/F350 4wd 4 Suspension Lift Kit 3 Rear Spring Diesel - Fox 2.5 PES C/O Front Fox 2.0 IFP PS Aux Front Fox 2.0 IFP PS Rear
What it does
- Raises the truck 4″
- Room for tires up to 35″, the maker says
- Comes with FOX 2.5 Performance Elite shocks

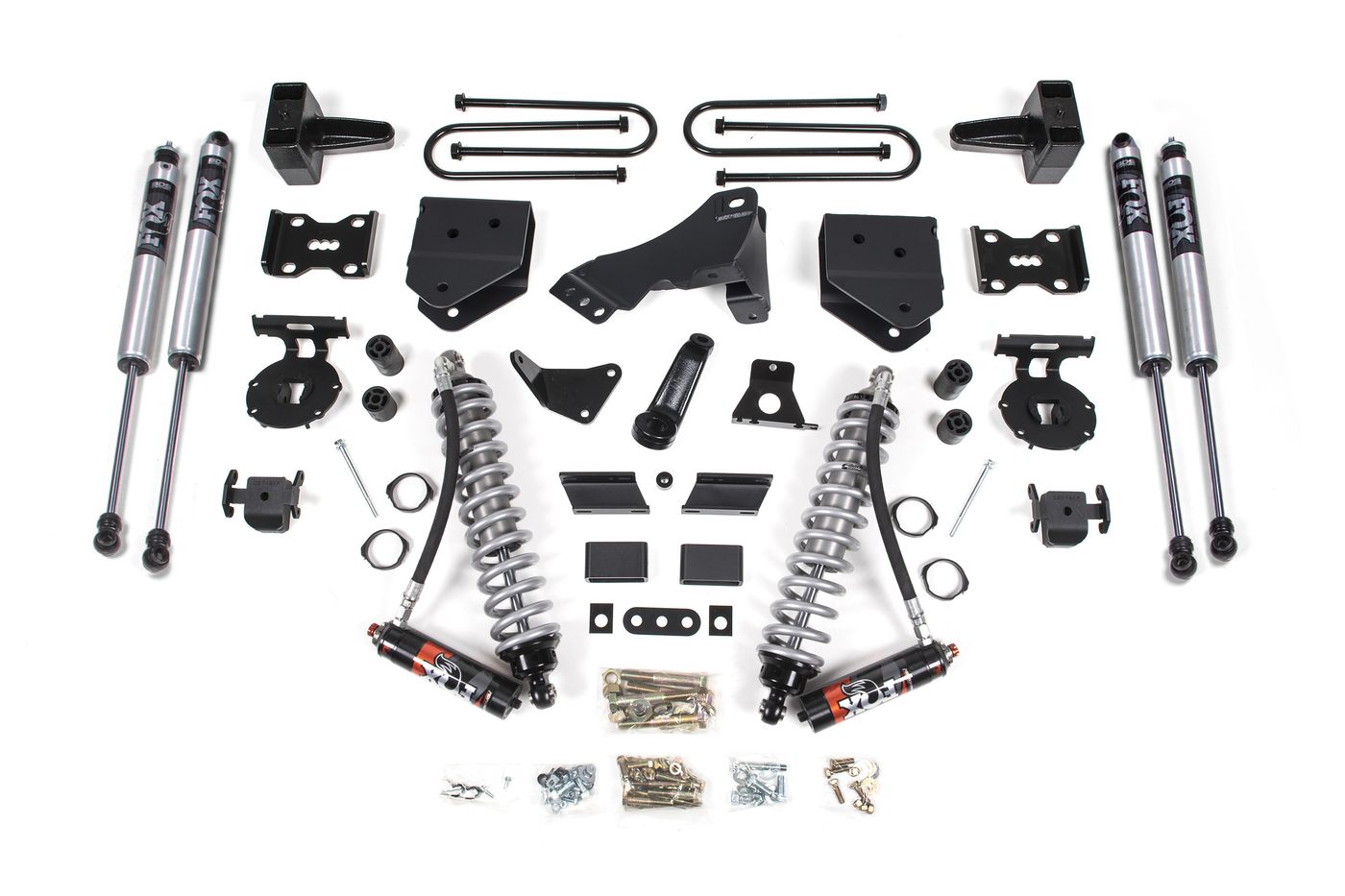

What you get
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
Take your 2011-2016 Ford F250 and F350 Super Duty diesel truck to the next level with this 4-inch lift kit with FOX Performance Elite coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned FOX secondary shocks. In the rear this kit utilizes a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of FOX Performance shocks. FOX Performance Elite Coil-Over FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency. Steering Correction To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Highlights
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving c
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Ford F-250 Super Duty | 2011–2016 | 4WD | All |
| Ford F-350 Super Duty | 2011–2016 | 4WD | All |
