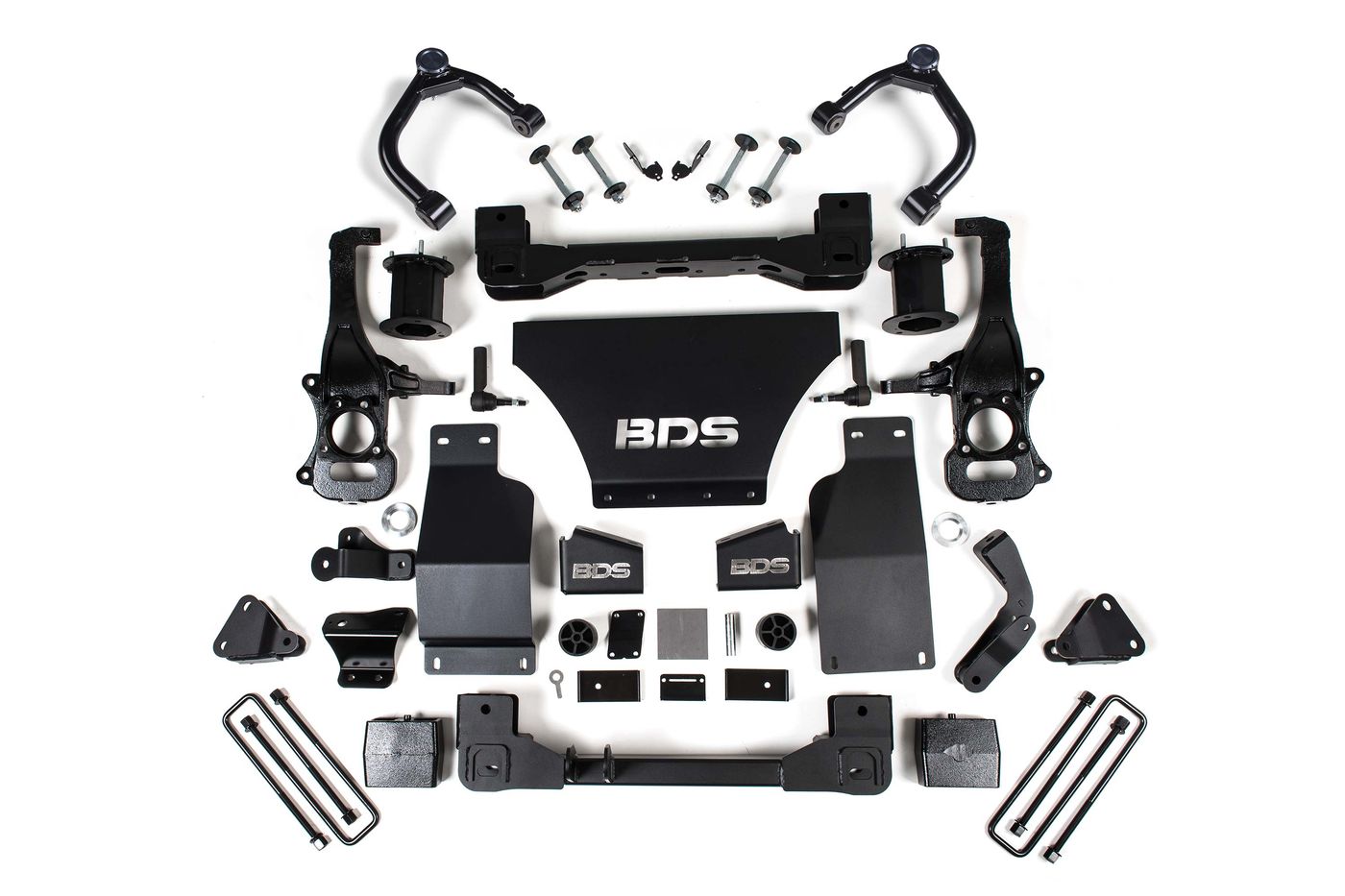

BDS 4″ Suspension Lift for 2022–2026 Chevrolet Silverado 1500 and 2022–2026 GMC Sierra 1500
Part number BDS 1835H
$2,265.36the kit
Tell us your truck and we'll check this kit against it.
How much taller your truck sits.
Better shocks ride smoother. Same height.
$2,265.36 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
APG, the distributor, describes this kit as: 2022-2023 Chevy ZR2/GMC AT4X 4wd 4 Suspension System
What it does
- Raises the truck 4″
What you get
- Maintains factory Multimatic shock system
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
About this kit
Improve the appearance and performance of your Chevy Silverado ZR2 and GMC AT4X 1500 trucks with a 4-inch suspension lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your vehicle up right with clearance for up to 35-37" tires. This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for superior on-road handling. Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch-thick steel crossmembers, along with a multi-piece differential relocation bracket and heavy-duty skid plates built for off-road protection. Steering geometry is corrected with CNC-machined ductile iron steering knuckles and replacement tie rod ends, ensuring compatibility with the ESC system. These, combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware, and more, provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear, BDS offers a heavy-duty lift block to lift and level that stance. The lift block installs in place of the stock block, retaining ride quality and load capacity. Additionally, for the rear, new U-bolts and shock relocation brackets are installed to ensure the Multimatic shock system operates without error.
Highlights
- Maintains factory Multimatic shock system
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms
Read the full description
Note: This kit works with trucks equipped with Multimatic shocks only. High Clearance Crossmembers BDS maximizes ground clearance with their heavy-duty, 1/4-inch-thick, laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry using a pair of high-strength, CNC-machined ductile cast iron steering knuckle designs that work with replacement tie rod end
Trucks it fits
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet Silverado 1500 | 2022–2026 | All | ZR2 |
| GMC Sierra 1500 | 2022–2026 | All | AT4X |
