BDS 5″ Suspension Lift with FOX 2.5 Performance Elite shocks for 2020–2022 Ford F-350 Super Duty and 2020–2022 Ford F-250 Super Duty

4-Link · Part number BDS 1569FPE

$5,994.60the kit

Tell us your truck and we'll check this kit against it.

5″ of lift
Height

How much taller your truck sits.

Shocks

Better shocks ride smoother. Same height.

$5,994.60 the kit

Shop for my truck

Questions about fit? Call (903) 249-4714

Price and fit confirmed on your call. Nothing charged online.

Before you buy

APG, the distributor, describes this kit as: 2020-2022 Ford F250/350 4wd 5 4-Link Suspension Lift Kit 4 Rear Spring Diesel - Fox 2.5 PES C/O Front Fox 2.0 IFP PS Aux Front Fox 2.0 IFP PS Rear

What it does

  • Raises the truck 5″
  • Room for tires up to 37″, the maker says
  • Comes with FOX 2.5 Performance Elite shocks

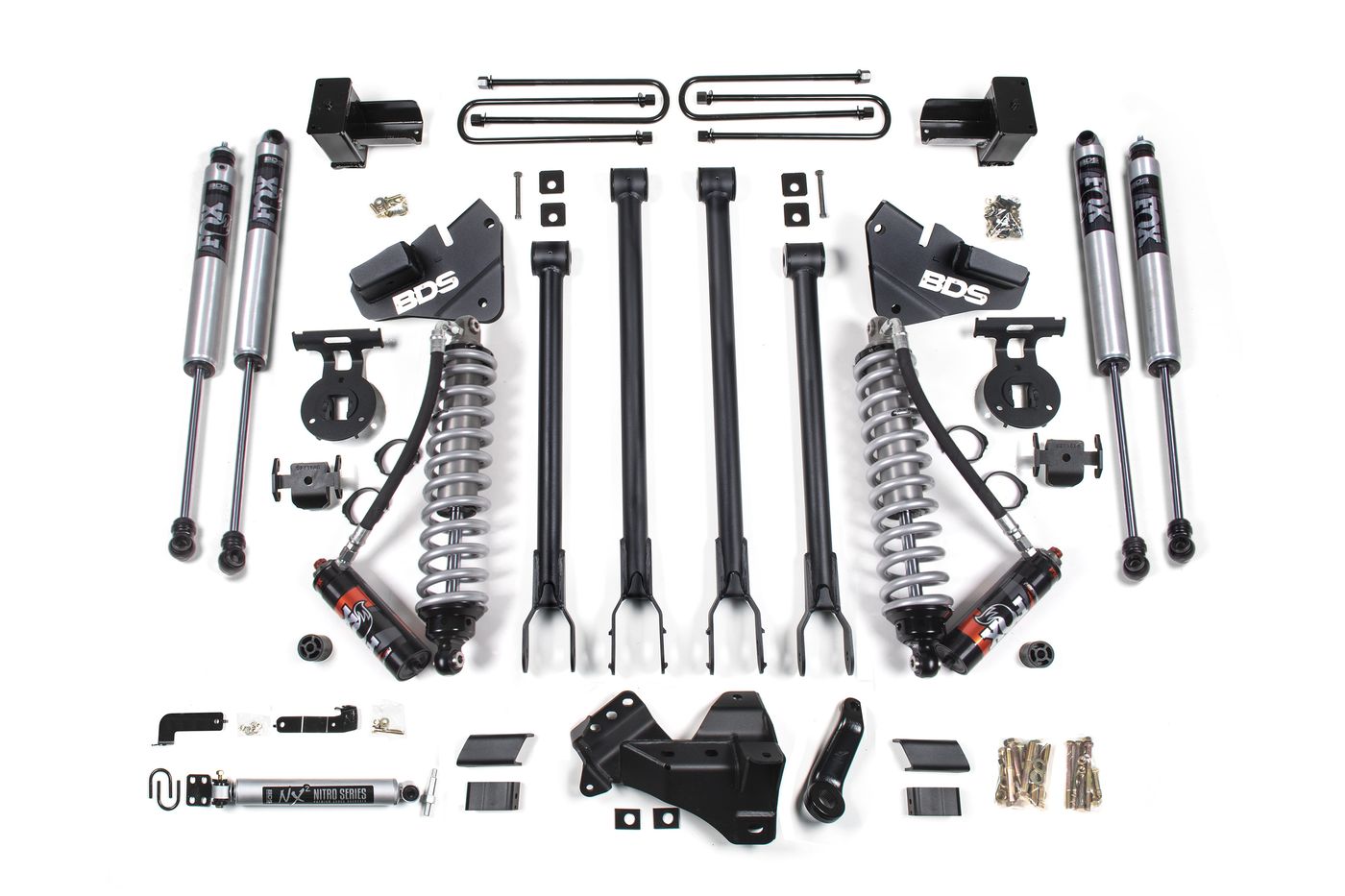

What you get

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty 4-Link control

What else you might need

About this kit

Maximize the capability of your Ford Super Duty diesel powered truck with this 5-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks. 4-Link Conversion Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. FOX Performance Elite Coil-Over FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency. Steering Correction To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering a

Highlights

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty 4-Link control

Trucks it fits

TruckYearsDriveTrims
Ford F-250 Super Duty 2020–2022 4WD All
Ford F-350 Super Duty 2020–2022 4WD King Ranch, Lariat, Limited, Platinum, XL, XLT
