Rough Country 4″ Suspension Lift for 1980–1996 Ford Bronco
Rear Springs · Part number Rough Country 520B30
$999.95the kit
Out of stock · as of Nov 9
Tell us your truck and we'll check this kit against it.
How much taller your truck sits.
Better shocks ride smoother. Same height.
$999.95 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
Extended brake lines are recommended. If vehicle is equipped with a front sway-bar, drop brackets are recommended. (SKU: 1018) Vehicles with factory quad shocks (2 front shocks per side) will simply use a single aftermarket shock.
What it does
- Raises the truck 4″
- Room for tires up to 33″, the maker says
- Base kit: its name names no shock upgrade
What you get
- Increased ground clearance Levels the front with the rear of the vehicle
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
Tires Rough Country fitted with this kit
| Tire | Wheel | Bolt pattern | Offset | Note |
|---|---|---|---|---|
| 33x12.50R17 | 17x8.5 | 5x5.5 | +0 | |
| 33x12.50R17 | 17x8.5 | 5x5.5 | +1 | |
| 33x12.50R17 | 17x9 | 5x5.5 | -12 | |
| 33x12.50R17 | 17x9 | 5x5.5 | +0 | |
| 285/70R17 | 17x9 | 5x5.5 | +0 | |
| 33x12.50R17 | 17x9 | 5x5.5 | +1 | |
| 285/70R17 | 17x9 | 5x5.5 | +1 | |
| 33x12.50R18 | 18x8.5 | 5x5.5 | +0 | |
| 33x12.50R18 | 18x8.5 | 5x5.5 | +1 | |
| 33x12.50R18 | 18x9 | 5x5.5 | -12 | |
| 305/60R18 | 18x9 | 5x5.5 | -12 | |
| 285/65R18 | 18x9 | 5x5.5 | -12 | |
| 275/65R18 | 18x9 | 5x5.5 | -12 | |
| 33x12.50R18 | 18x9 | 5x5.5 | +0 | |
| 305/60R18 | 18x9 | 5x5.5 | +0 | |
| 285/65R18 | 18x9 | 5x5.5 | +0 | |
| 275/65R18 | 18x9 | 5x5.5 | +0 | |
| 33x12.50R18 | 18x9 | 5x5.5 | +1 | |
| 305/60R18 | 18x9 | 5x5.5 | +1 | |
| 285/65R18 | 18x9 | 5x5.5 | +1 | |
| 275/65R18 | 18x9 | 5x5.5 | +1 | |
| 33x12.50R20 | 20x9 | 5x5.5 | -12 | |
| 33x12.50R20 | 20x9 | 5x5.5 | +0 | |
| 305/55R20 | 20x9 | 5x5.5 | +0 | |
| 285/55R20 | 20x9 | 5x5.5 | +0 | |
| 33x12.50R20 | 20x9 | 5x5.5 | +1 | |
| 305/55R20 | 20x9 | 5x5.5 | +1 | |
| 285/55R20 | 20x9 | 5x5.5 | +1 | |
| 285/55R20 | 20x10 | 5x5.5 | -19 | Minor Trimming |
| 285/55R20 | 20x10 | 5x5.5 | -18 | Minor Trimming |
| 33x12.50R22 | 22x10 | 5x5.5 | -19 | Minor Trimming |
| 305/45R22 | 22x10 | 5x5.5 | -19 | |
| 33x12.50R22 | 22x10 | 5x5.5 | -18 | Minor Trimming |
| 305/45R22 | 22x10 | 5x5.5 | -18 | |
| 33x12.50R22 | 22x12 | 5x5.5 | -44 | Trimming Required |
About this kit
Give your 80-96 Ford Bronco an aggressive look from front to rear with Rough Country’s 4" Ford Suspension Lift Kit! This easy-to-install leveling kit raises the front of your vehicle to be equal height with the rear for a leveled, flush look that gives a better ride height and more aggressive appearance. This kit features a set of front, durable coil springs and rear leaf springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of radius arm and I-Beam drop brackets are provided to keep everything at optimum angles for a factory-like ride, even after lifting. Our fabricated rear blocks offer considerably more strength than their cast iron counterparts. A set of Rough Country's premium N3 shocks are also included in this kit. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body. Get the wheels you want! Rough Country's 4" Ford Suspension Lift Kit comes with everything you need to fit up to a 33x12.5" tire with proper wheel backspacing. Best of all, Rough Country's 4" Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty.
Highlights
- Increased ground clearance Levels the front with the rear of the vehicle

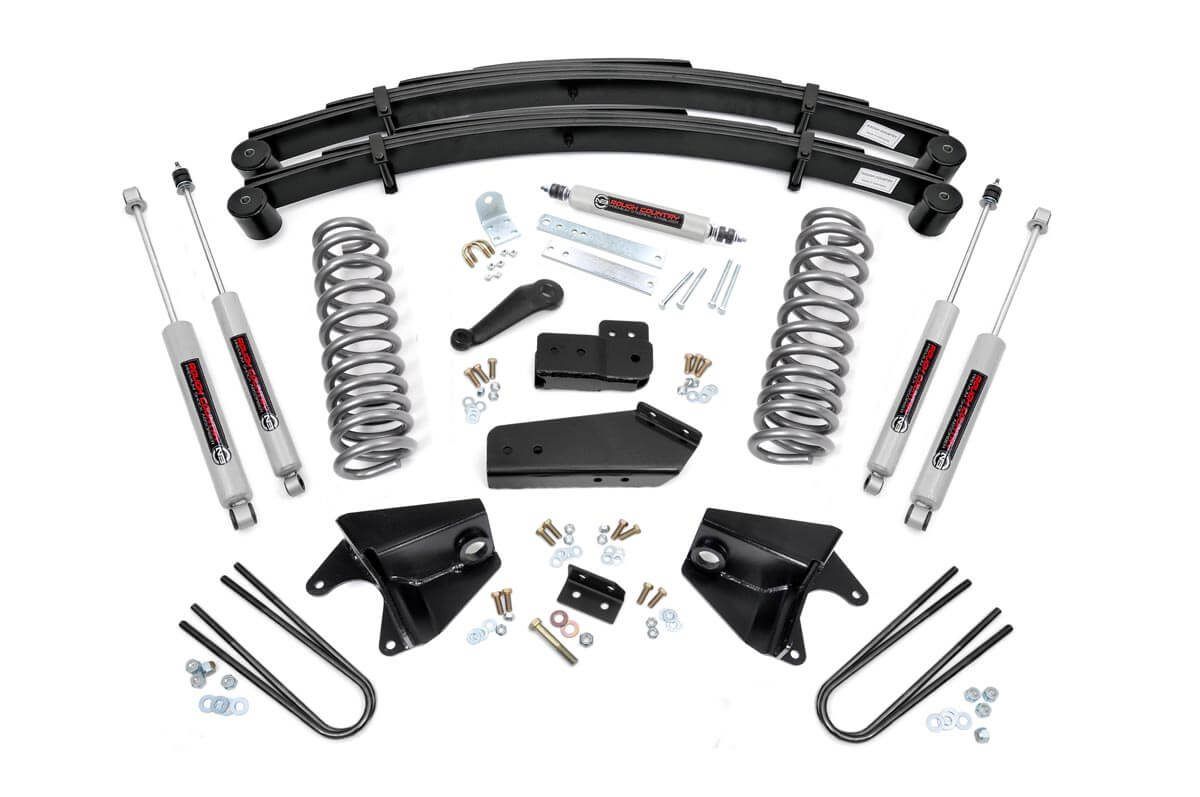

What's in the box
- 2 × 4in Rear Leaf Spring | Ford Bronco/F-150 4WD (1980-1996) Part #8029
- 1 × Universal U-Bolt Kit Part #7623
- 1 × 4in Coils | Ford Bronco (80-96) Ford F-150 (80-96) Part #9254
- 1 × Br Installation Kit | Ford Bronco (80-96) Ford F-150 (80-96) Part #7510
- 1 × N3 Shock Pair Part #23260
- 1 × N3 Shock Pair Part #23284
- 1 × N3 Steering Stabilizer | Ford Bronco/F-150/F-250 (1980-1998) Part #8734230
- 1 × Pitman Arm | Ford Bronco/F-250 Super Duty/F-350 Super Duty 4WD Part #6601
| Front | Lifted coil springs Radius arm drop brackets I-beam drop brackets Power steering pitman arm FREE steering stabilizer Hardware |
|---|---|
| Rear | Lifted leaf springs U-bolts Hardware |
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 520B30 |
| UPC | 843030161002 |
| Lift | 4″ |
| Shipping weight | 275.5 lb |
| Country of origin | USA |
| Shipping | Ground shipping only · Arrives in more than one box |
Trucks it fits
All 9 fitments
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Ford Bronco | 1980–1993 | 4WD | Custom |
| Ford Bronco | 1980–1981 | 4WD | Ranger XLT |
| Ford Bronco | 1982–1983 | 4WD | XLS |
| Ford Bronco | 1982–1993 | 4WD | XLT Lariat |
| Ford Bronco | 1984–1996 | 4WD | XLT |
| Ford Bronco | 1985–1996 | 4WD | Eddie Bauer |
| Ford Bronco | 1990–1996 | 4WD | XL |
| Ford Bronco | 1992 | 4WD | XLT Nite |
| Ford Bronco | 1995–1996 | 4WD | XLT Sport |
Installation
How it works
- The tire setups are tested by the maker. Tap a tire size to shop it.
- True to size. Fitment measured to the inch.
