Rough Country 4″ Suspension Lift for 1977–1986 Chevrolet K20 and 3 more trucks
52 Inch RR Springs · Part number Rough Country 25030
$899.95the kit
In stock at Rough Country · as of Nov 9
Tell us your truck and we'll check this kit against it.
How much taller your truck sits.
Better shocks ride smoother. Same height.
$899.95 the kit
Questions about fit? Call (903) 249-4714
Price and fit confirmed on your call. Nothing charged online.
Before you buy
ONLY fits models with 52" rear leaf springs. If vehicle is equipped with a front sway-bar, drop brackets are recommended. (SKU: 1019) Vehicles with factory quad shocks (2 front shocks per side) will simply use a single aftermarket shock.
What it does
- Raises the truck 4″
- Room for tires up to 35″, the maker says
- Base kit: its name names no shock upgrade
What else you might need
- An alignment once it is fitted
- Bigger tires to fill the space
Tires Rough Country fitted with this kit
| Tire | Wheel | Bolt pattern | Offset | Note |
|---|---|---|---|---|
| 35x12.50R15 | 15x8 | 8x6.5/8x165.1 | -39 | Trimming Required |
| 35x12.50R15 | 15x8 | 8x6.5/8x165.1 | +0 | |
| 35x12.50R15 | 15x8 | 8x6.5/8x165.1 | +1 | |
| 35x12.50R17 | 17x9 | 8x6.5/8x165.1 | -12 | |
| 315/70R17 | 17x9 | 8x6.5/8x165.1 | -12 | |
| 35x12.50R18 | 18x9 | 8x6.5/8x165.1 | -12 | |
| 295/70R18 | 18x9 | 8x6.5/8x165.1 | -12 | |
| 285/75R18 | 18x9 | 8x6.5/8x165.1 | -12 | |
| 35x12.50R20 | 20x9 | 8x6.5/8x165.1 | -12 | |
| 35x11.50R20 | 20x9 | 8x6.5/8x165.1 | -12 | |
| 295/65R20 | 20x9 | 8x6.5/8x165.1 | -12 |
About this kit
Give your truck an impressive upgrade, front to back with Rough Country’s 4" GM Suspension Lift System! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance. This kit features a set of front lifted leaf springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of rear leaf springs and brake line brackets are provided to keep everything at optimum angles for a factory-like ride, even after lifting. A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body. Get the wheels you want! Rough Country's 4" GM Suspension Lift System comes with everything you need to fit up to a 35" tire with proper wheel backspacing. Best of all, Rough Country's 4” GM Suspension Lift System is backed by our Lifetime Replacement Warranty.
Highlights
- Increased ground clearance Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

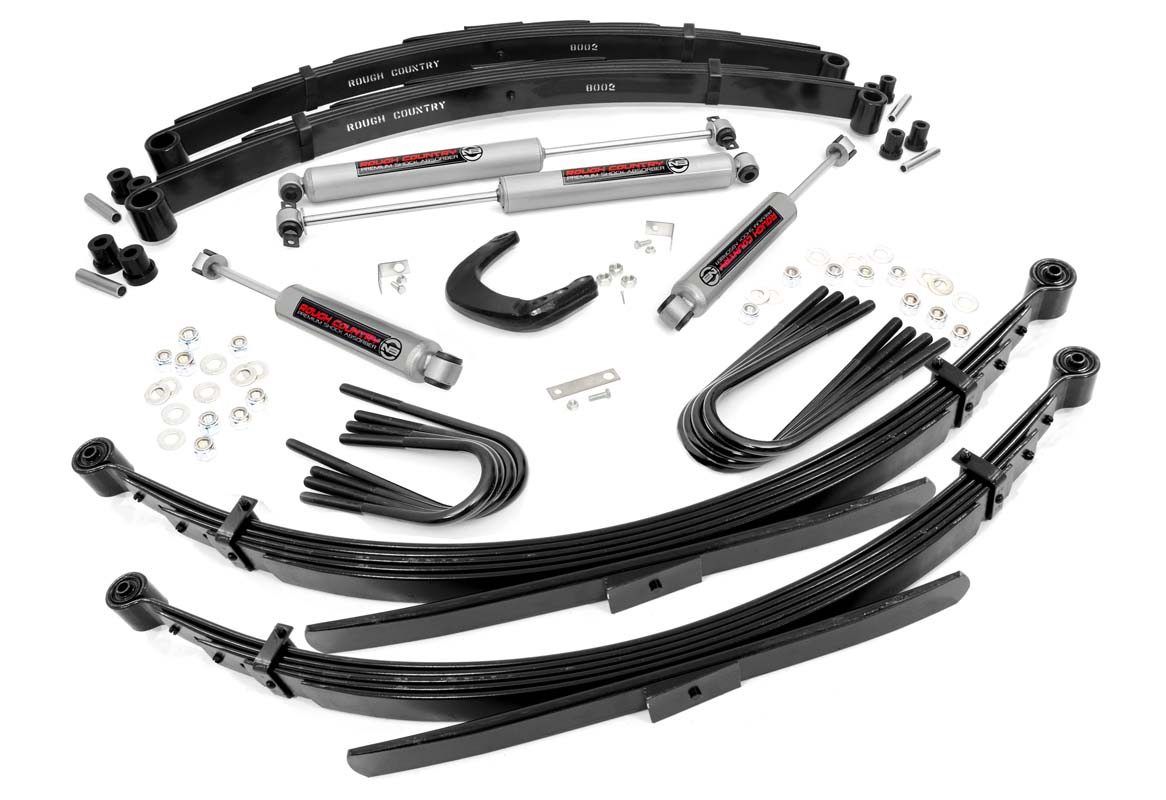

What's in the box
- 1 × Universal U-Bolt Kit Part #7616
- 1 × Raised Steering Arm | Chevy/GMC C10/K10 C15/K15 Truck/Half-Ton Suburban/K5 Blazer (69-91) Part #6600
- 2 × 4in Rear Leaf Spring | Chevy/GMC C10/K10 Truck & SUV/K5 Blazer 4WD (73-91) Part #8200
- 2 × 4in Spring | Chevy/GMC C10/K10 Truck (73-87)/Half-Ton Suburban (73-91) Part #8002R
- 1 × Fr Inst Kit Sp Spr | Chevy C20/K20 Pickup (77-87) GMC C15/K15 Pickup (77-87) Part #7562-2
- 1 × N3 Shock Pair Part #23204
- 1 × N3 Shock Pair Part #23174
| Front | Lifted leaf springs Steering Arm Brake line relocation brackets U-bolts Hardware |
|---|---|
| Rear | Lifted leaf springs U-bolts Hardware |
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 25030 |
| UPC | 843030156169 |
| Lift | 4″ |
| Shipping weight | 283.42 lb |
| Country of origin | China |
| Shipping | Ground shipping only · Arrives in more than one box |
Trucks it fits
All 13 fitments
| Truck | Years | Drive | Trims |
|---|---|---|---|
| Chevrolet K20 | 1977–1981 | 4WD | Cheyenne |
| Chevrolet K20 | 1977–1980 | 4WD | Custom Deluxe |
| Chevrolet K20 | 1977–1986 | 4WD | Scottsdale, Silverado |
| Chevrolet K20 | 1981–1986 | 4WD | Custom |
| Chevrolet K20 | 1981 | 4WD | Deluxe |
| Chevrolet K20 Suburban | 1977–1980 | 4WD | Custom Deluxe |
| Chevrolet K20 Suburban | 1977–1986 | 4WD | Scottsdale, Silverado |
| Chevrolet K20 Suburban | 1981–1986 | 4WD | Custom |
| Chevrolet K20 Suburban | 1981 | 4WD | Deluxe |
| GMC K2500 | 1979–1986 | 4WD | Base, High Sierra, Sierra Classic |
| GMC K2500 | 1979–1982 | 4WD | Sierra Grande |
| GMC K2500 Suburban | 1979–1986 | 4WD | Base, High Sierra, Sierra Classic |
| GMC K2500 Suburban | 1979–1982 | 4WD | Sierra Grande |
Installation
How it works
- The tire setups are tested by the maker. Tap a tire size to shop it.
- True to size. Fitment measured to the inch.
